MD1A-5-IR

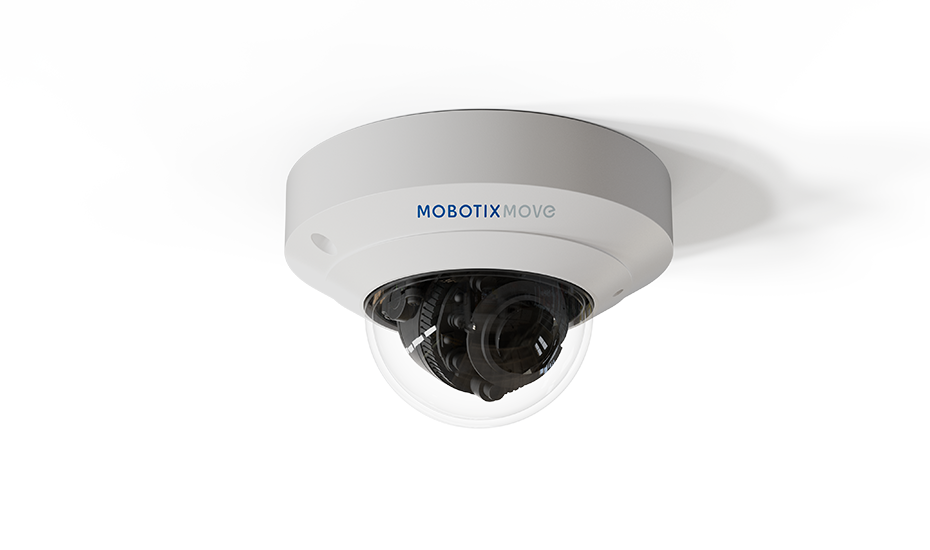

MOBOTIX MOVE 5MP Micro Dome
MD1A-5-IR
MOBOTIX MOVE 5MP Micro Dome
MOBOTIX MOVE 5MP Micro Dome
Yüksek çözünürlüklü görüntüleme sunar: 2720 x 1976, 2 MP, 5MP, 5 MP. Düşük ışıkta ve gece koşullarında görüntüleme için kızılötesi/gerçek gündüz-gece desteği sunar. Yapay zekâ destekli video analitiği ve akıllı olay algılama özellikleri sağlar.
MOBOTIXSabit Dome Kameralar
Teknik dokümantasyon
Özellikler
Genel Özellikler
Sessupport (integrated microphone ve speaker) 3D Motion Compensated Noise Reduction (MCTF) Smart Event functions: Motion Detection Network Failure Detection/Tampering Alarm Periodical Event/Manual Trigger Text Overlay ve Privacy Masks microSD/SDHC/SDXC kart desteği (SD kadar 1 TB) ONVIF Profil S/G/T support EN50155 (Transportation) ve EN45545 (fire) approvals Document ID: Mx_TS_Mx-MD1A-5-IR_V1.22_EN V1.22_7/1/2026, Order Code: Mx-MD1A-5-IR
Ürün Bilgileri
Ürün adı5MP Indoor Micro Dome Camera
Sipariş koduMx-MD1A-5-IR
Donanım Tasarımı
İşlemciInnofusion C5 (Dual-core ARM® Cortex®-A7, 1.2 GHz)
BellekRAM: 512 MB
FLASH bellek256 MB
Görüntü sensörü5MP, 1/2.7" Progressive CMOS OS05A20 (OmniVision)
Etkin (kullanılan) piksel sayısı2688x1944 (5MP) Lens
Minimum aydınlatmaColor: 0.17 lux B/W: 0.04 lux
Lens özellikleriFocal length: 2.8 mm
DiyaframF2.0
Yatay görüş açısı108.3°
Dikey görüş açısı76.5°
Kamera
Gündüz / geceOtomatik olarak switchable IR-cut filter Shutter Speed 1 ila 1/10000 s (WDR)
Kare hızı (maksimum)H.265:5MP@30fps + 720p@30fps H.264:5MP@30fps + 720p@30fps MJPEG: 1080p@30fps
Otomatik kazançMin. gain: 3 dB, max. gain: 48 dB, step size: 3
WDRTrue WDR 120 dB
YakınlaştırmaDigital: 10x
Görüntü ayarlarıColor, Brightness, Sharpness, Contrast, White Balance, Exposure Control, 2DNR, 3DNR, NR by Motion Masking, Text Overlay
Görüntü döndürme90°, 180°, 270°
Video kodeğiCompression/Encoding H.265/H.264/MJPEG Streaming kadar 4 individually configurable streams in H.264/H.265/MJPEG; configurable resolution, frame rate, bandwidth LBR/VBR/CBR in H.265/H.264
SesCodec Compression/Encoding G.711/G.726/LPCM Streaming 2-Way, bidirectional
Ses girişiIntegrated microphone/Line In
Ses çıkışıIntegrated speaker/Line Out ila avoid audio quality degradation, do not connect the built-in microphone ve Harici audio-input device (üzerinden Line In) at the same time. The same applies ila the audio output connections. Cyber Security Features Password Protection Evet (including “forced” password change during initial setup) IP address filtering Evet (ila restrict unauthorized access based on IP addresses) IEEE 802.1X network access control Evet (for advanced network security ve authentication) Digest…
Ağ
Desteklenen protokollerARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2 ONVIF Conformance Supports profiles S/G/T
Desteklenen tarayıcılarAll current browsers are supported
Sistem Entegrasyonu
MuhafazaMaterial Plastic
Muhafaza 2Color RAL 9003
SesIn terminal block
Ses 2Out terminal block IR Illumination 850 nm; kadar 15 m/49 ft distance depending on reflection of scenery Video Storage microSD/SDHC/SDXC kart desteği kadar 1 TB, Support for recording ila NAS, MOBOTIX HUB, MOBOTIX MOVE NVR Environmental Protection Sınıf Indoor IK8
Çalışma sıcaklığı-30 ila 55 °C/-22 ila 131 °F
Bağıl nem90 % yoğuşmasız
DepolamaConditions -20 ila 70 °C/-4 ila 158 °F Approvals CE, FCC, BIS
MTBF (ortalama arızasız çalışma süresi)95,000 saat Warranty 5 yıl
Ağırlık248 g Observe the MOBOTIX MOVE Installation Hints document ila ensure optimum performance of the camera features
Sipariş koduOverview Outline Discern Perceive Characterize Validate Scrutinize Mx-MD1A-5-IR 47 m/61 m 154.20 ft/200.13 ft 23 m/31 m 75.46 ft/101.71 ft 12 m/15 m 39.37 ft/49.21 ft 7 m/10 m 22.97 ft/32.81 ft 4 m/5 m 13.12 ft/16.40 ft 2 m/2 m 6.56 ft/6.56 ft 1 m/1 m 3.28 ft/3.28 ft DORI Specifications DORI Distances
Sipariş kodu 2Description Compatible Products Material/ Color
Ağırlık 2MX-NPA-UPOE1A-60W UPoE Power Injector 60W. PoE++ 60W Network Power injector • AC Input Voltage: 100 ila 240 VAC (50 ila 60Hz) • AC Input Current: 1.5A @100- 240 VAC • Operating Ambient Temperature: • -10º ila 40ºC @60W • -10º ila 50ºC, humidity 10 ila 90% @30W • IEEE 802.3bt compliant • Output power of 60W over 4-pairs • Supports 10/100/1000Base-T applications • Plug-ve-play installation • Full Protection OVP, OCP• Supports 10/100/1000Base-T applic- ations. All cameras. Plastic hous- ing, black 0.45 kg
Sipariş kodu 3Description Compatible Products Material/ Color
Ağırlık 3Mx-A-ETP1A-2601-SET Media converter set Ethernet (PoE+) - Twisted-Pair. Complete set consisting of two two-wire transmit/receive units for establishing an Eth- ernet transmission path üzerinden twisted-pair cables. • Trans- mission of Ethernet ve PoE+
Güç beslemesiüzerinden two-wire line uygun olarak IEEE1901. • Simple connection of 10/100 Mbps Ethernet end devices • Max. 95 Mbps transmission bandwidth, range kadar 600 m/656 yd for data only, 300 m/328 yd for PoE depending on the quality of the twisted- pair link • 128 bit AES network data encryption • Power sup- ply 2-wire transmitter (Tx) ve receiver (Rx) as well as end device üzerinden PoE+ network switch veya Harici power sup- ply 56VDC / 1.2A (not included!) • Connected end devices are supplied üzerinden PoE switch…
Sipariş kodu 4Description Compatible Products Material/ Color
