MSD1A

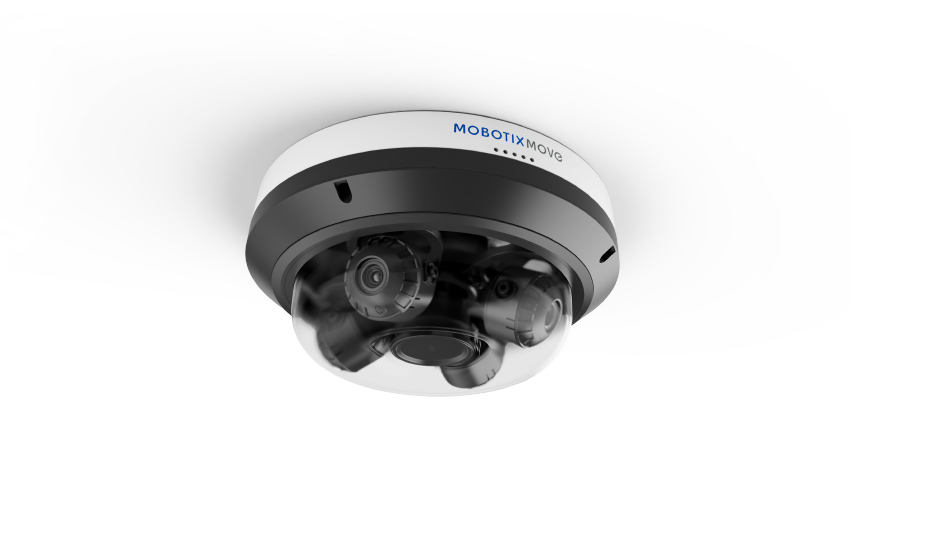

MOBOTIX MOVE Darbeye Dayanıklı Çok Sensörlü Kamera
MSD1A
MOBOTIX MOVE Darbeye Dayanıklı Çok Sensörlü Kamera
MOBOTIX MOVE Vandal Multisensor Camera
Yüksek çözünürlüklü görüntüleme sunar: 4x, 2 MP, 5 MP, 20MP. Düşük ışıkta ve gece koşullarında görüntüleme için kızılötesi/gerçek gündüz-gece desteği sunar. Yapay zekâ destekli video analitiği ve akıllı olay algılama özellikleri sağlar.
MOBOTIXÇok Yönlü Kameralar
Teknik dokümantasyon
Özellikler
Genel Özellikler
WDRkadar 130 dB Integrated IR surround illu- mination kadar 30 m/98 ft Supports kadar nine streams H.264/H.265/MJPEG Smart event functions Intelligent encoding, smart low- bitrate control Integrated microphone ve speaker, bi-directional audio Line In/Out MOBOTIX MxMessageSystem 2D & 3D motion-compensated noise reduction (MCTF) ONVIF Profil S/G/T/M support DNN video analytics (8 VA, Face & ALPR) M.2 SATA3 SSD support kadar 8 TB microSD SDHC/SDXC card sup- port kadar 1 TB (2 slots) Triple power support…
Koruma sınıfıIP66/IK10 NEMA 4x-compliant Built-in FIPS 140-2 Level 2-cer- tified TPM hardware/firmware
Sıcaklık aralığı-40 ila 60 °C/-40 ila 140 °F entegre heater ON EverClear coating of multisensor bubble Document ID: Mx_TS_Mx-VM1A-20-IR-VA_V1.14_EN V1.14_7/1/2026, Order Code: Mx-VM1A-20-IR-VA
Ürün Bilgileri
Ürün adı20MP Multisensor IR Video Analytics Camera
Sipariş koduMx-VM1A-20-IR-VA
Donanım Tasarımı
İşlemciAmbarella CV52 (Dual-core ARM® Cortex®-A76, 1.6 GHz)
BellekRAM: 512 MB
FLASH bellek256 MB Image Sensors 4 x 5MP 1/2.8” Progressive CMOS IMX675 (SONY STARVIS 2)
Etkin (kullanılan) piksel sayısı(per image sensor) 2608x1964 (5MP) Pixel Size 2.0 µm Lens
Minimum aydınlatmaColor: 0.02 Lux B/W: 0.001 Lux F1.6, AGC=on, 30 IRE, 1/1 s
Lens özellikleri(per image sensor) Motorized Lens: Zoom, Focus
Odak uzaklığı2.8 ila 8 mm
DiyaframF1.6
Yatay görüş açısı111.5° (Wide), 53.7° (Tele)
Dikey görüş açısı79° (Wide), 40.2° (Tele) Multisensor Bubble Coating Superhydrophilic MOBOTIX EverClear nano coating transforms water droplets into an ultra-thin water film upon impact. The coating ensures best image qual- ity in rain ve difficult Harici conditions ve it reduces reflections ve noise in low-light scenarios. EverClear is dirt-repellent ve increases the stability as well as the scratch-resistance of the multisensor bubble, further reducing main- tenance efforts. Coating endurance kadar 3 yıl depending on…
Kamera
Gündüz / geceOtomatik olarak switchable IR-cut filter
Deklanşör hızı (otomatik)1 ila 1/10000 s
Deklanşör hızı (manuel)WDR: 1 ila 1/67500 s Linear: 1 ila 1/67500 s
Deklanşör önceliği modukadar 1/45 s
Kare hızı (maksimum)WDR on/off: H.265/H.264: 5MP@30 fps MJPEG: 1080p@30 fps
Otomatik kazançMin. gain: 3 dB, max. gain: 48 dB, step size: 3
WDRkadar 130 dB
YakınlaştırmaOptical: 3x, Digital: 10x
Görüntü ayarlarıColor, Brightness, Sharpness, Contrast, White Balance, Exposure Control, 2DNR, 3DNR, NR by Motion, Masking, Text Overlay
Görüntü döndürme90°, 180°, 270° Camera Module Adjustment (per image sensor) Pan/tilt/rotate/twist
Video kodeğiCompression/Encoding H.265/H.264/MJPEG Streaming kadar 9 individually configurable streams (4 streams, 4 sub streams, 1 Quad stream) in H.264/H.265/MJPEG; configurable resolution, frame rate, bandwidth LBR/VBR/CBR in H.265/H.264
SesCodec Compression/Encoding G.711/G.726/AAC/LPCM Streaming Bi-directional
Ses girişiIntegrated microphone ve speaker Line In: Max. 2.28 V pp for line signal Input impedance: 33 kΩ
Ses çıkışıLine Out Output resistance: 220 Ω Output voltage: 1 V rms Cyber Security Features Password Protection Evet (including “forced” password change during initial setup) IP address filtering Evet (ila restrict unauthorized access based on IP addresses) IEEE 802.1X network access control Evet (for advanced network security ve authentication) Digest authentication Evet (for secure user authentication) FIPS 140-2 Level 2 Evet (Infineon OPTIGA™ TPM SLB 9670 TPM 2.0, NIST/CMVP Certified Trusted Platform Module: Cer-…
GüvenlikLevel Exceptions: Physical Security: Level 3 EMI/EMC: Level 3 Secure Boot Evet (support of fixed IP setting ve automatic DHCP IP configuration uygun olarak individual MAC address) True random number generator Evet (üzerinden TPM chipset) AES encryption for password protection Evet (ila ensure strong encryption for password storage) HTTPS/SSL (using TLS) Evet (TLS 1.2 varsayılan, TLS 1.0/1.1 optional selectable) User ve Group Management Evet (for fine-grained access control) VPN Evet (ila establish secure…
Ağ
Desteklenen protokollerARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2, VPN ONVIF conformance Supports profiles S/G/T/M
Desteklenen tarayıcılarAll current browsers are supported
Sistem Entegrasyonu
Sesdetection DNN-Based Video Analytics Abandoned objects Intrusion (object classification/filtering for people, vehicles, etc.) Sabotage Wrong direction Loitering (object classification/filtering for people, vehicles, etc.) Object counting (object classification/filtering for people, vehicles, etc.) Object removal Stopped vehicle (object classification/filtering) 1 analytics function can be activated for every image sensor Enhanced DNN-Based Video Analytics Face Recognition (incl. gender & age estimation) Number…
MuhafazaMaterials Metal ve plastic
Muhafaza 2Color RAL 9003 Power Requirements IEEE802.3bt, Type 3, Sınıf 6, max 51 Watt AC24V, max 53.1 Watt, max 74.8 VA DC24V, max 27.55 Watt Connectors RJ45 (Ethernet)
USBType A 2 x Alarm in, 2x Alarm out, Audio in, Audio out terminal block DC24V/AC24V terminal block Line In/Out IR Illumination 850 nm; kadar 30 m/98 ft distance depending on reflection of scenery Video Storage microSD SDHC/SDXC kart desteği kadar 1 TB (2 slots), M.2 SATA3 SSD kart desteği kadar 8 TB (Hayır SCSI support! ), support for recording ila NAS, MOBOTIX HUB, MOBOTIX MOVE NVR, MOBOTIX CLOUD Remotely Upgradable Firm- ware Evet Environmental Protection Sınıf IP66/IK10
Çalışma sıcaklığı-40 ila 60 °C/-40 ila 140 °F entegre heater ON
Bağıl nem90 % yoğuşmasız
DepolamaConditions -20 ila 70 °C/-4 ila 158 °F Approvals EMC: CE, FCC, BIS Safety: LVD IT Security: FIPS 140-2-compliant (using certified TPM chipset) Environmental: IP66, IK10, NEMA-4x-compliant
MTBF (ortalama arızasız çalışma süresi)95,000 saat Warranty 5 yıl; mechanically wearable parts (motor, gears, belts, etc.) excluded
Ağırlık2400 g Observe the MOBOTIX MOVE Installation Hints document ila ensure optimum performance of the camera features
Alarm girişi / çıkışıCurrent ve Voltage
Alarm girişiAlarm Out 5 V ile 10 kΩ pull up, 50 mA 400 V DC/AC, 120 mA
Sipariş kodugeniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ Wide- Angle ⇔/⇕ Tele ⇔/⇕ Wide- Angle ⇔/⇕ Tele ⇔/⇕ Mx-VM1A-20-IR-VA 50 m/65 m 164.04 ft/213.25 ft 131 m/140 m 429.79 ft/459.32 ft 25 m/32 m 82.02 ft/104.99 ft 65 m/70 m 213.25 ft/229.66 ft 12 m/16 m 39.37 ft/52.49 ft 33 m/35 m 108.27 ft/114.83 ft 8 m/10 m 26.25 ft/32.81 ft 21 m/22 m 68.90 ft/72.18 ft 4 m/5 m 13.12 ft/16.40 ft 10 m/11 m 32.81 ft/36.09 ft 2 m/3 m 6.56 ft/9.84 ft 5 m/6 m…
Sipariş kodu 2Description Compatible Products Material/ Color
Ağırlık 2Mx-M-VM-AP Adapter mounting plate for MOVE Vandal Multisensor camera Mx-M-VM1A-20-IR- VA. MOVE Vandal Multisensor cam- era Mx-M-VM1A- 20-IR-VA. Can be com- bined ile MX- M-SD-GN, MX-M- SD-PM, MX-M- SD-PMEXT, Mx- M-SD-W, Mx-M- SD-WL, Mx-M- SD-WM. Die-cast ADC12 aluminium alloy, powder- coated RAL9003 1.95 kg Mx-M-VM-IC Indoor in-ceiling mount for MOVE Vandal Multisensor camera Mx-M-VM1A-20-IR- VA. MOVE Vandal Multisensor cam- era Mx-M-VM1A- 20-IR-VA. Zinc-galvanized SECC steel, powder-coated RAL9003 0.965 kg
Sipariş kodu 3Description Compatible Products Material/ Color
Ağırlık 3Mx-A-VM-DBC Clear replacement dome for MOVE Vandal Multi- sensor camera Mx-VM1A- 20-IR-VA. MOVE Vandal Multisensor cam- era Mx-VM1A-20- IR-VA. Polycarbonate, clear 0.53 kg Mx-A-VM-DBT Tinted replacement dome for MOVE Vandal Multi- sensor camera Mx-VM1A- 20-IR-VA. MOVE Vandal Multisensor cam- era Mx-VM1A-20- IR-VA. Polycarbonate, tinted 0.53 kg
Sipariş kodu 5Description Compatible Products Material/ Color
Ağırlık 4Mx-NPA-PoE1A-60W-BT PoE++ Power Network Injector 60 Watt. AC Input Voltage: 100 ila 240 VAC (50 ila 60Hz) • AC Input Current: 1.5A @100-240 VAC • Operating Ambient Tem- perature: • -10º ila 40ºC @60W -10º ila 50ºC, humidity 10 ila 90% @30W • IEEE 802.3bt com- pliant • Output power of 60W over 4-pairs • Supports 10/100/1000Base-T applic- ations • Plug-ve-play install- ation • Full Protection OVP, OCP • Additional required power cord C14-type not included • Warranty: 1 year. All cameras. Plastic hous- ing, black…
Sipariş kodu 6Description Compatible Products Material/ Color
Ağırlık 5Mx-A-ETP1A-2601-SET Media converter set Ethernet (PoE+) - Twisted-Pair. Complete set consisting of two two-wire transmit/receive units for establishing an Eth- ernet transmission path üzerinden twisted-pair cables. • Trans- mission of Ethernet ve PoE+
Güç beslemesiüzerinden two-wire line uygun olarak IEEE1901. • Simple connection of 10/100 Mbps Ethernet end devices • Max. 95 Mbps transmission bandwidth, range kadar 600 m/656 yd for data only, 300 m/328 yd for PoE depending on the quality of the twisted- pair link • 128 bit AES network data encryption • Power sup- ply 2-wire transmitter (Tx) ve receiver (Rx) as well as end device üzerinden PoE+ network switch veya Harici power sup- ply 56VDC / 1.2A (not included!) • Connected end devices are supplied üzerinden PoE switch…
Sipariş kodu 7Description Compatible Products Material/ Color
Video analitiğiManual
