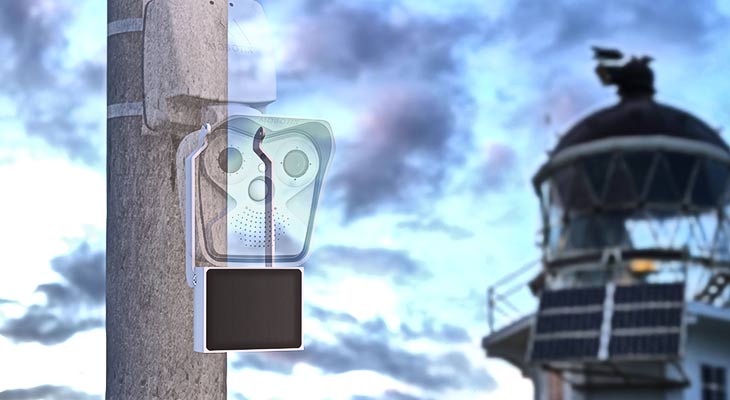

MxIRLight
MxIRLight
MxIRLight
MxIRLight
MxIRLight
Düşük ışıkta ve gece koşullarında görüntüleme için kızılötesi/gerçek gündüz-gece desteği sunar. Lens ve görüş açısı seçenekleriyle farklı izleme alanlarına uyarlanabilir. Dış mekân kullanımı için hava koşullarına ve darbelere dayanıklı tasarıma sahiptir.
MOBOTIXKayıt ve Depolama
Teknik dokümantasyon
Özellikler
Genel Özellikler
Ürün adıMxIRLight Infrared LED iIluminators (6 model variants) Mx-A-IRA-120 (EAN: 4047438030342); Mx-A-IRA-90 (EAN: 4047438030359); Mx-A-IRA-60 (EAN: 4047438030366); Mx-A-IRA-45 (EAN: 4047438030373); Mx-A-IRA-30 (EAN: 4047438030380); Mx-A-IRA-15 (EAN: 4047438030397) Supported video sources All (MOBOTIX) cameras ve doorstations ile black & white sensor Ambient temperature range -30 ila 60°C (-22 ila 140°F) IP Sınıf IP67 (dust tight; water tight when temporarily immersed in water kadar a depth of 1 m) Installation notes…
Ağırlık (ambalajsız)750 g Anschlusskabel (Länge: 90 cm) RJ45-Stecker, auch passend für MOBOTIX RJ45-Anschlussbuchsen (zum wetterfesten Anschluss an MxSplitProtect oder MX-Overvoltage-Protection-Box)
Güç beslemesiPoE+ IEEE 802.3at, üzerinden ethernet cable ve standard PoE+ injector veya switch (mode A veya B, e.g., MxSwitch)
Güç tüketimi17 W ila max 19 W (standby mode: approx 0.8 W) Automatic switch-on/off üzerinden photosensor - Switch-on immediatley, when ambient light level drops below3 lux; - Switch-off, when ambient light level exceeds 3 lux for more than 150 seconds IR wavelength 860 nm (semi-discreet) IR illumination angles (horizontal x vertical) Depending on variant: 120° x 120°; 90° x 90°; 60° x 60°; 45° x 45°; 30° x 30°; 15° x 15° IR illumination range Depending on variant: 120°: 20 m , 90°: 35 m, 60°: 50 m, 45°: 80 m, 30°: 120 m…
MuhafazaAluminium, front ile infrared-permeable protective glass
SertifikalarEN 60950-1:2006 + A11:2009/A1:2010/A12:2011 EN 62471:2009 EN 55015:2013 EN 61547:2009 EN 61000-4-2:2009 AS/ NZS CISPR 15:2013
MTBF (ortalama arızasız çalışma süresi)> 80,000 saat Delivery Infrared Illuminator ile aluminium muhafaza ve 0.9 m long connection cable ile screws, dowels, washers, Allen screws M6x20 for the optional MOBOTIX mounting brackets, Torx key, Allen wrench
Ayrıntılı teknik dokümantasyonwww.mobotix.com > Support > Manuals Online version of this document
Muhafaza 2• 860 nm • IP67 • Range: kadar 20 m / 22 yards • PoE+ power supply üzerinden network cable (IEEE 802.3at), 19 W (max.) power consumption • Photosensor for automatic switching on/off (threshold value: 3 lux, delay for switching off: 150 s) • Including standard mount for installing on wall ve ceiling, screws, preassembled 0.9 m patch cable ile RJ45 connector ve MOBOTIX special sealing ring • Optional accessories: mounting brackets for M1x/M2x (Mx-M-IRA-ML/Mx-M-IRA-M) • muhafaza color: white Mx-A-IRA-90…
Muhafaza 3• 860 nm • IP67 • Range: kadar 35 m / 39 yards Mx-A-IRA-60 4047438030366 Infrared illuminator ile 60° illumination angle (horizontal ve vertical), aluminum
Muhafaza 4• 860 nm • IP67 • Range: kadar 50 m / 55 yards Mx-A-IRA-45 4047438030373 Infrared illuminator ile 45° illumination angle, (horizontal ve vertical) aluminum
Muhafaza 5• 860 nm • IP67 • Range: kadar 80 m / 88 yards Mx-A-IRA-30 4047438030380 Infrared illuminator ile 30° illumination angle (horizontal ve vertical), aluminum
Muhafaza 6• 860 nm • IP67 • Range: kadar 120 m / 132 yards Mx-A-IRA-15 4047438030397 Infrared illuminator ile 15° illumination angle (horizontal ve vertical), aluminum
Muhafaza 7• 860 nm • IP67 • Range: kadar 160 m / 175 yards MxIRLight Mounting Brackets For M1x ve M2x: Ordering InformationMxIRLight Mounting Brackets For M1x ve M2x: Ordering InformationMxIRLight Mounting Brackets For M1x ve M2x: Ordering Information Order Number EAN Description Mx-M-IRA-ML 4047438030403 Mounting brackets for the MOBOTIX M15/M16 AllroundDual cameras • Accessories for the MxIRLight Infrared Illuminator • Material: aluminum • Color: white Mx-M-IRA-M 4047438030410 Mounting brackets for the MOBOTIX M25/M26…
