SD1A-540

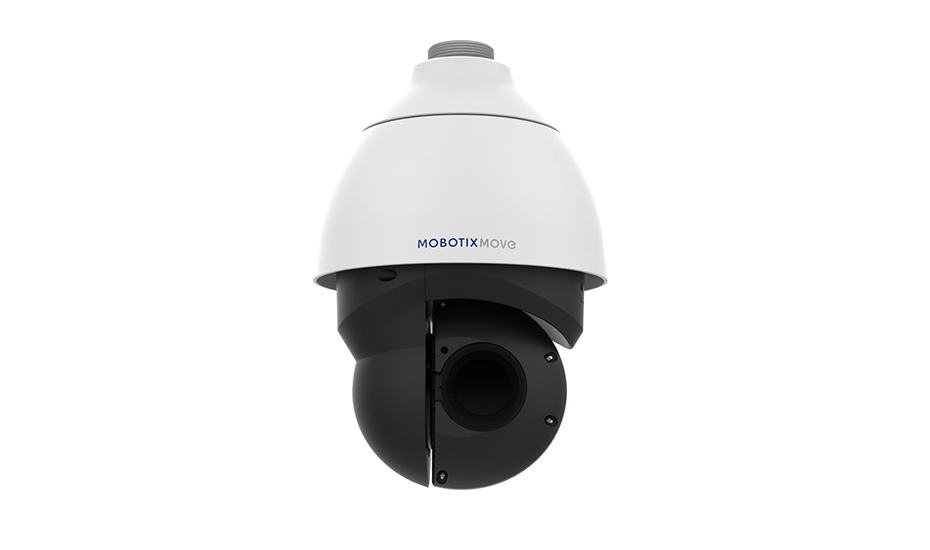

MOBOTIX MOVE SpeedDome SD-540 5MP IR
SD1A-540
MOBOTIX MOVE SpeedDome SD-540 5MP IR
MOBOTIX MOVE SpeedDome SD-540 5MP IR
Yüksek çözünürlüklü görüntüleme sunar: 2608 x 1964, 40x, 5 MP, 5MP. Düşük ışıkta ve gece koşullarında görüntüleme için kızılötesi/gerçek gündüz-gece desteği sunar. Yapay zekâ destekli video analitiği ve akıllı olay algılama özellikleri sağlar.
MOBOTIXPTZ SpeedDome Kameralar
Teknik dokümantasyon
Özellikler
Genel Özellikler
Video analitiğifunctions include face ve license plate recognition that can be combined ile preset PTZ positions ila enable a wide variety of 24/7 video surveillance applications. The MOBOTIX EverClear superhydrophilic ve self-cleaning nano coating of the front glass ensures best image quality even in rain ve reduces cleaning efforts ve operational costs. High light sensitivity: 0.02 Lux color, 0.001 Lux B/W 40x motorized zoom/focus lens 4.3 ila 170 mm
WDRkadar 130 dB Integrated IR illumination kadar 300 m/984 ft Quad streaming H.264/H.265/MJPEG Intelligent encoding, smart low- bitrate control MOBOTIX MxMessageSystem 2D & 3D motion-compensated noise reduction (MCTF) ONVIF Profil S/G/T/M support
Elektronik görüntü sabitleyici (EIS)Auto object tracking, DNN-based (persons, vehicles) DNN video analytics (8 VA, Face & ALPR) linkable ila PTZ presets & smart event functions Smart Event Functions microSD/SDHC/SDXC card sup- port kadar 1 TB Dual power support (IEEE802.3bt/AC24V) Outdoor protection rate IP66, IK10 muhafaza
Sıcaklık aralığı-40 ila 55 °C/-40 ila 131 °F entegre heater ON EverClear coating of front glass Document ID: Mx_TS_Mx-SD1A-540-IR-VA_V1.16_EN V1.16_7/1/2026, Order Code: Mx-SD1A-540-IR-VA
Ürün Bilgileri
Ürün adı5MP IR Video Analytics Speed Dome
Sipariş koduMx-SD1A-540-IR-VA
Donanım Tasarımı
İşlemciAmbarella CV25 (Quad-core ARM® Cortex®-A53, 1 GHz)
BellekRAM: 512 MB
FLASH bellek256 MB
Görüntü sensörü5MP, 1/2.8" Progressive CMOS IMX675 (SONY STARVIS 2)
Etkin (kullanılan) piksel sayısı2688x1944 (5MP) Lens
Minimum aydınlatmaColor: 0.02 Lux B/W: 0.001 Lux F1.6, AGC=on, 30 IRE, 1/1 s
Lens özellikleriZoom Lens: Zoom, Auto Focus, P-IRIS, Auto-IRIS
Odak uzaklığı4.3 ila 170 mm
DiyaframF1.6 - F4.95
Yatay görüş açısı62.6° (Wide), 1.9° (Tele)
Dikey görüş açısı48.8° (Wide), 1.4° (Tele)
Ön cam kaplamasıSuperhydrophilic MOBOTIX EverClear nano coating transforms water droplets into an ultra-thin water film upon impact. The coating ensures best image qual- ity in rain ve difficult Harici conditions ve it reduces reflections ve noise in low-light scenarios. EverClear is dirt-repellent ve increases the stability as well as the scratch-resistance of the front glass, further reducing maintenance efforts. Coating endurance kadar 3 yıl depending on environmental con- ditions ve cleaning treatment
Kamera
Gündüz / geceOtomatik olarak switchable IR-cut filter
Deklanşör hızı (otomatik)1 ila 1/10000 s
Deklanşör hızı (manuel)WDR: 1/67500 s Linear: 1/135000 s
Deklanşör önceliği modukadar 1/45 s
Kare hızı (maksimum)WDR on/off: H.265/H.264: 5MP@30 fps MJPEG: 1080p@30 fps
Otomatik kazançMin. gain: 3 dB, max. gain: 48 dB, step size: 3
WDRkadar 130 dB Electronic Image Stabilizer (EIS) Evet
Otomatik nesne takibiOn/off (object-based DNN algorithm: humans/vehicles selectable)
YakınlaştırmaOptical: 40x, Digital: 10x
Görüntü ayarlarıColor, Brightness, Sharpness, Contrast, White Balance, Exposure Control, 2DNR, 3DNR, NR by Motion, Masking, Text Overlay
Görüntü döndürme90°, 180°, 270°
Servo geri beslemeEvet
PTZ Özellikleri
Ön ayar konumlarıkadar 256 positions, 1 Home position
Sekanslarkadar 8 sequences ile 64 preset positions each
Tur rotalarıkadar 8
Otomatik yatay tarama rotalarıkadar 4
Konum gösterimiPan/Tilt derece can be displayed in live image
Yatay dönüş aralığı360° endless
Dikey eğim aralığı-20° ila +100°
Yatay dönüş hızıManual Pan Speed: 0.1°-90°/s Preset Pan Speed: 300°/s
Dikey eğim hızıManual Tilt Speed: 0.1°-55°/s Preset Tilt Speed: 300°/s
Joystick / tuş takımı kontrolüRS485 protocols DSCP, Pelco-D ve Pelco-P
Video analitiğiPresets can be combined ile 1 selectable integrated video analytics feature
Video kodeğiCompression/Encoding H.265/H.264/MJPEG Streaming kadar 4 individually configurable streams in H.264/H.265/MJPEG; configurable resolution, frame rate, bandwidth LBR/VBR/CBR in H.265/H.264
SesCodec Compression/Encoding G.711/G.726/AAC/LPCM Streaming Bi-directional
Ses girişiLine In Max. 2.28 V pp for line signal Input impedance: 33 kΩ
Ses çıkışıLine Out Output resistance: 220 Ω Output voltage: 1 V rms Cyber Security Features Password Protection Evet (including “forced” password change during initial setup) IP address filtering Evet (ila restrict unauthorized access based on IP addresses) IEEE 802.1X network access control Evet (for advanced network security ve authentication) Digest authentication Evet (for secure user authentication) Secure Boot Evet (support of fixed IP setting ve automatic DHCP IP configuration uygun olarak individual MAC address)…
Ağ
Desteklenen protokollerARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2, VPN ONVIF conformance Supports profiles S/G/T/M
Desteklenen tarayıcılarAll current browsers are supported
Sistem Entegrasyonu
Sesdetection DNN-Based Video Analytics (linkable ila PTZ presets) Abandoned objects Intrusion (object classification/filtering for people, vehicles, etc.) Sabotage Wrong direction Loitering (object classification/filtering for people, vehicles, etc.) Object counting (object classification/filtering for people, vehicles, etc.) Object removal Stopped vehicle (object classification/filtering) 2 analytics functions can be activated simultaneously Enhanced DNN-Based Video Analytics (linkable ila PTZ presets) Face…
MuhafazaMaterials Metal ve plastic
Muhafaza 2Color RAL 9003 Power Requirements IEEE802.3bt, Type 3, Sınıf 6, max 51.00 watt AC24V, max 59.05 watt, max 87.12 VA Connectors RJ45 4 x Alarm in, 2x Alarm out, Audio in, Audio out, RS485 terminal block AC24V terminal block CVBS connector (Mevcut ile max. 2 activated streams) IR Illumination 850 nm; kadar 300 m/984 ft distance depending on reflection of scenery Video Storage microSD/SDHC/SDXC kart desteği kadar 1 TB (using SD card adapter), Support for recording ila NAS, MOBOTIX HUB, MOBOTIX MOVE NVR Remotely…
Çalışma sıcaklığı-40 ila 55 °C/-40 ila 131 °F entegre heater ON
Bağıl nem90 % yoğuşmasız
DepolamaConditions -20 ila 70 °C/-4 ila 158 °F
MTBF (ortalama arızasız çalışma süresi)50,000 saat Warranty 5 yıl; mechanically wearable parts (motor, gears, belts, etc.) excluded
Ağırlık3800 g Observe the MOBOTIX MOVE Installation Hints document ila ensure optimum performance of the camera features
Alarm girişi / çıkışıCurrent ve Voltage
Alarm girişiAlarm Out 5 V ile 10 k Ω pull up, 50 mA 400 V DC/AC, 120 mA
Sipariş kodugeniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ Wide- Angle ⇔/⇕ Tele ⇔/⇕ Wide- Angle ⇔/⇕ Tele ⇔/⇕ Wide- Angle ⇔/⇕ Tele ⇔/⇕ Wide- Angle ⇔/⇕ Tele ⇔/⇕ Wide- Angle ⇔/⇕ Tele ⇔/⇕ Mx-SD1A-540-IR-VA 107 m/107 m 351.05 ft/351.05 ft 3908 m/3978 m 12821.52 ft/13051.18 ft 53 m/54 m 173.88 ft/177.17 ft 1954 m/1989 m 6410.76 ft/6525.59 ft 27 m/27 m 88.58 ft/88.58 ft 977 m/994 m 3205.38 ft/3261.15 ft 17 m/17 m 55.77 ft/55.77 ft 625 m/636 m 2050.53 ft/2086.61 ft 9 m/9 m 29.53 ft/29.53 ft 313 m/318 m 1026.90 ft/1043.31 ft 4…
Sipariş kodu 2Description Compatible Products Material/ Color
Ağırlık 2Mx-M-SD-C Weatherproof corner mount. Mx-M-SD-W veya Mx-M- SD-WL. CAUTION! Cannot be used ile MX-M-SD-WM veya Mx-M-SD- WMJB! SPCC steel, ham- mer-blow painted RAL9003 2.17 kg Mx-M-SD-P Weatherproof pole mount. Mx-M-SD-W veya Mx-M- SD-WL. CAUTION! Cannot be used ile MX-M-SD-WM veya Mx-M-SD- WMJB! Zinc-galvanized SECC steel, powder-coated RAL9003 1.58 kg
Sipariş kodu 3Description Compatible Products Material/ Color
Ağırlık 3MX-MH-SecureFlex-ESWS Weatherproof pole mount for extreme conditions. Mx-M-SD-W veya Mx-M- SD-WL. CAUTION! Cannot be used ile MX-M-SD-WM veya Mx-M-SD- WMJB! Stainless steel 3 mm, white 1.23 kg Mx-M-SD-W Weatherproof wall mount for MOVE Speed Dome/Vandal Multisensor/Vandal Turret cameras. All MOVE Speed Dome/Vandal Multi- sensor/Vandal Tur- ret cameras. Can be combined ile Mx-M-SD-C veya Mx-M-SD-P ve cam- era adaptor plates (MX-M-VT-AP, MX-M- VM-AP, Mx-M-VMSD- AP). Die-cast ADC12 aluminium alloy, hammer- blow…
Sipariş kodu 4Description Compatible Products Material/ Color
Ağırlık 4Mx-M-SD-WL Extended weather- proof wall mount for MOVE Speed Dome/Vandal Multi- sensor/Vandal Turret cameras. All MOVE Speed Dome/Vandal Multi- sensor/Vandal Tur- ret cameras. Can be combined ile Mx-M-SD-C veya Mx-M-SD-P ve cam- era adaptor plates (MX-M-VT-AP, MX-M- VM-AP, Mx-M-VMSD- AP). Die-cast ADC12 aluminium alloy, hammer- blow painted RAL9003 1.5 kg MX-M-SD-WM Weatherproof wall mount for MOVE Speed Dome/Vandal Multisensor/Vandal Turret cameras. Can also be mounted on top of wall mount junction box MX-M-…
Sipariş kodu 5Description Compatible Products Material/ Color
Ağırlık 5MX-M-SD-WMJB Weatherproof wall mount junction box (IP66) for Mx-M-SD- WM. Allows for com- fortable cabling ve installation of addi- tional HW equipment such as PoE Injectors, lightning protection, etc. All MOVE Speed Dome/Vandal Turret cameras. CAUTION! Only ila be used as base for Mx-M-SD- WM (wall mount is mounted on top of junction box). Bracket: Steel, powder-coated RAL9003 Junction box: Die-cast ADC12 aluminium alloy, RAL9003 4.8 kg MX-M-SD-PM Pendant mount kit incl. base mount, 25 cm/10 in pendant pipe…
Sipariş kodu 6Description Compatible Products Material/ Color
Ağırlık 6MX-M-SD-PMEXT Extension pipe 25 cm/10 in for MX-M- SD-PM. Extends MX-M-SD- PM; max. extended total length is 1 m/39 in (3 exten- sions). Die-cast ADC10 aluminium alloy, powder- coated RAL9003 0.8 kg MX-M-SD-GN Weatherproof para- pet mount (goose neck; IP66) ile integ- rated junction box. Integrated junction box allows for com- fortable cabling ve installation of addi- tional hardware equipment such as PoE Injectors, light- ning protection, etc. All MOVE Speed Dome/Vandal Multi- sensor/Vandal Tur- ret cameras…
Sipariş kodu 7Description Compatible Products Material/ Color
Ağırlık 7Mx-A-SD-DCT Clear replacement dome for MOVE Speed Dome cameras SD-230 ve SD-330. All MOVE Speed Dome (SD) cameras SD-230 ve SD-330. Ring: Die-cast ADC12 alu- minium alloy, powder-coated RAL9003 Dome: Polycar- bonate, clear 0.3 kg Mx-A-SD-DBC-EC Clear EverClear- coated replacement dome for MOVE Speed Dome cameras SD-230 ve SD-330. All MOVE Speed Dome (SD) cameras SD-230 ve SD-330. Ring: Die-cast ADC12 alu- minium alloy, powder-coated RAL9003 Dome: Polycar- bonate, clear 0.58 kg MX-A-SD-DBT-EC Tinted EverClear-…
Sipariş kodu 11Description Compatible Products Material/ Color
Ağırlık 8Mx-NPA-PoE1A-60W-BT PoE++ Power Network Injector 60 Watt. AC Input Voltage: 100 ila 240 VAC (50 ila 60Hz) • AC Input Current: 1.5A @100-240 VAC • Operating Ambient Tem- perature: • -10º ila 40ºC @60W -10º ila 50ºC, humidity 10 ila 90% @30W • IEEE 802.3bt com- pliant • Output power of 60W over 4-pairs • Supports 10/100/1000Base-T applic- ations • Plug-ve-play install- ation • Full Protection OVP, OCP • Additional required power cord C14-type not included • Warranty: 1 year. All cameras. Plastic hous- ing, black…
Sipariş kodu 12Description Compatible Products Material/ Color
Ağırlık 9MX-SWITCH1 DIN (top-hat) rail mounting. 5x RJ45 port ile 100 MBit/s (1x uplink, 4x PoE+ ile max. 75 W). Supply: 48 V DC, max. 75 W. Simplified cabling for door stations due ila Mevcut connectivity for anti-theft pro- tection, door opener ve MxBus. MxBus, anti-theft pro- tection, door ve lock contact can be connected üzerinden separate wires of Ethernet cable. All cameras. Plastic hous- ing, gray 0.31 kg
Video analitiğiManual
