SD2A-230-LL-FM-VA

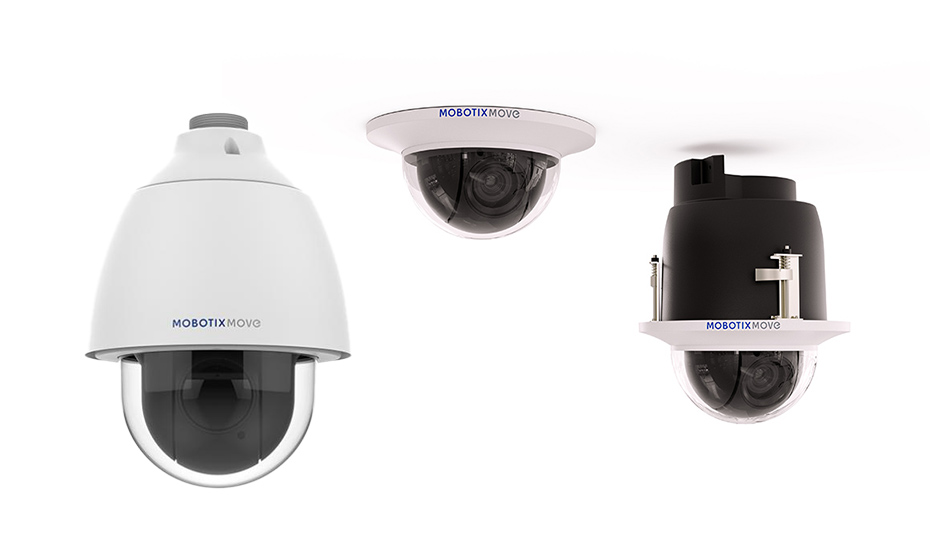

MOBOTIX MOVE SD-230 SpeedDome 2MP Düşük Işık
SD2A-230-LL-FM-VA
MOBOTIX MOVE SD-230 SpeedDome 2MP Düşük Işık
MOBOTIX MOVE SD-230 SpeedDome 2MP Low-Light
Yüksek çözünürlüklü görüntüleme sunar: 1965 x 1113, 30x, 2 MP, 2MP. Düşük ışıkta ve gece koşullarında görüntüleme için kızılötesi/gerçek gündüz-gece desteği sunar. Yapay zekâ destekli video analitiği ve akıllı olay algılama özellikleri sağlar.
MOBOTIXPTZ SpeedDome Kameralar
Teknik dokümantasyon
Özellikler
Genel Özellikler
WDRkadar 130 dB Quad streaming H.264/H.265/MJPEG Intelligent encoding, smart low- bitrate control MOBOTIX MxMessageSystem 2D & 3D motion-compensated noise reduction (MCTF) ONVIF Profil S/G/T/M support
Elektronik görüntü sabitleyici (EIS)Auto object tracking, DNN-based (persons, vehicles) DNN video analytics (8 VA, Face & ALPR) linkable ila PTZ presets & smart event functions Smart Event Functions microSD/SDHC/SDXC card sup- port kadar 1 TB Dual power support (IEEE802.3at/AC24V)
Sıcaklık aralığı-40 ila 55 °C/-40 ila 131 °F Document ID: Mx_TS_Mx-SD2A-230-LL-FM-VA_V1.15_EN V1.15_7/1/2026, Order Code: Mx-SD2A-230-LL-FM-VA
Ürün Bilgileri
Ürün adı2MP Low-Light Flush-Mount Video Analytics Speed Dome
Sipariş koduMx-SD2A-230-LL-FM-VA
Donanım Tasarımı
İşlemciAmbarella CV25 (Quad-core ARM® Cortex®-A53, 1 GHz)
BellekRAM: 512 MB
FLASH bellek256 MB
Görüntü sensörü2MP, 1/2.8" Progressive CMOS IMX662 (SONY STARVIS 2)
Etkin (kullanılan) piksel sayısı1920x1080 (2MP)
Minimum aydınlatmaColor: 0.01 Lux B/W: 0.001 Lux F1.6, AGC=on, 30 IRE, 1/1 s
Lens özellikleriZoom Lens: Zoom, Auto Focus, P-IRIS, Auto-IRIS
Odak uzaklığı4.3 ila 129 mm
DiyaframF1.6 - F4.7
Yatay görüş açısı59.3° (Wide), 2.3° (Tele)
Dikey görüş açısı34.9° (Wide), 1.4° (Tele)
Kamera
Deklanşör hızı (otomatik)1 ila 1/10000 s
Deklanşör hızı (manuel)WDR: 1/37500 s Linear: 1/75000 s
Deklanşör önceliği modukadar 1/45 s
Kare hızı (maksimum)WDR on/off: H.265/H.264: 2MP@30 fps MJPEG: 1080p@30 fps
Otomatik kazançMin. gain: 3 dB, max. gain: 48 dB, step size: 3
WDRkadar 130 dB Electronic Image Stabilizer (EIS) Evet
Otomatik nesne takibiOn/off (object-based DNN algorithm: humans/vehicles selectable)
YakınlaştırmaOptical: 30x, Digital: 10x
Görüntü ayarlarıColor, Brightness, Sharpness, Contrast, White Balance, Exposure Control, 2DNR, 3DNR, NR by Motion, Masking, Text Overlay
Görüntü döndürme90°, 180°, 270°
Servo geri beslemeEvet
PTZ Özellikleri
Ön ayar konumlarıkadar 256 positions, 1 Home position
Sekanslarkadar 8 sequences ile 64 preset positions each
Tur rotalarıkadar 8
Otomatik yatay tarama rotalarıkadar 4
Konum gösterimiPan/Tilt derece can be displayed in live image
Yatay dönüş aralığı360° endless
Dikey eğim aralığı-10° ila +100°
Yatay dönüş hızıManual Pan Speed: 0.1°-90°/s Preset Pan Speed: 400°/s
Dikey eğim hızıManual Tilt Speed: 0.1°-55°/s Preset Tilt Speed: 300°/s
Joystick / tuş takımı kontrolüRS485 protocols DSCP, Pelco-D ve Pelco-P
Video analitiğiPresets can be combined ile 1 selectable integrated video analytics feature
Video kodeğiCompression/Encoding H.265/H.264/MJPEG Streaming kadar 4 individually configurable streams in H.264/H.265/MJPEG; configurable resolution, frame rate, bandwidth LBR/VBR/CBR in H.265/H.264
SesCodec Compression/Encoding G.711/G.726/AAC/LPCM Streaming Bi-directional
Ses girişiLine In Max. 2.28 V pp for line signal Input impedance: 33 kΩ
Ses çıkışıLine Out Output resistance: 220 Ω Output voltage: 1 V rms
Ağ
Desteklenen protokollerARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2, VPN ONVIF conformance Supports profiles S/G/T/M
Desteklenen tarayıcılarAll current browsers are supported
Sistem Entegrasyonu
Sesdetection DNN-Based Video Analytics (linkable ila PTZ presets) Abandoned objects Intrusion (object classification/filtering for people, vehicles, etc.) Sabotage Wrong direction Loitering (object classification/filtering for people, vehicles, etc.) Object counting (object classification/filtering for people, vehicles, etc.) Object removal Stopped vehicle (object classification/filtering) 2 analytics functions can be activated simultaneously Enhanced DNN-Based Video Analytics (linkable ila PTZ presets) Face…
MuhafazaMaterials Metal ve plastic
Muhafaza 2Color RAL 9003 Power Requirements PoE+ IEEE802.3at, Sınıf 4, max 17.71 watt AC24V, max 17.10 watt, max 32.67 VA PoE Modes Supported Mode A veya Mode B Connectors RJ45 4 x Alarm in, 2x Alarm out, Audio in, Audio out, RS485 terminal block AC24V terminal block CVBS connector (Mevcut ile max. 2 activated streams) Video Storage microSD/SDHC/SDXC kart desteği kadar 1 TB (using SD card adapter), Support for recording ila NAS, MOBOTIX HUB
Çalışma sıcaklığı-40 ila 55 °C/-40 ila 131 °F
Bağıl nem90 % yoğuşmasız
DepolamaConditions -20 ila 70 °C/-4 ila 158 °F Approvals EMC: CE, FCC, BIS Safety: LVD
MTBF (ortalama arızasız çalışma süresi)50,000 saat Warranty 5 yıl; mechanically wearable parts (motor, gears, belts, etc.) excluded
Ağırlık2700 g Observe the MOBOTIX MOVE Installation Hints document ila ensure optimum performance of the camera features
Alarm girişi / çıkışıCurrent ve Voltage
Alarm girişiAlarm Out 5 V ile 10 kΩ pull up, 50 mA 400 V DC/AC, 120 mA
Sipariş kodugeniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ Wide- Angle ⇔/⇕ Tele ⇔/⇕ Wide- Angle ⇔/⇕ Tele ⇔/⇕ Mx-SD2A-230-LL-FM-VA 85 m/85 m 278.87 ft/278.87 ft 2291 m/2210 m 7516.40 ft/7250.66 ft 42 m/43 m 137.80 ft/141.08 ft 1146 m/1105 m 3759.84 ft/3625.33 ft 21 m/21 m 68.90 ft/68.90 ft 573 m/552 m 1879.92 ft/1811.02 ft 14 m/14 m 45.93 ft/45.93 ft 367 m/354 m 1204.07 ft/1161.42 ft 7 m/7 m 22.97 ft/22.97 ft 183 m/177 m 600.39 ft/580.71 ft 3 m/3…
Sipariş kodu 2Description Compatible Products Material/ Color
Ağırlık 2Mx-M-SD-C Weatherproof corner mount. Mx-M-SD-W veya Mx-M- SD-WL. CAUTION! Cannot be used ile MX-M-SD-WM veya Mx-M-SD- WMJB! SPCC steel, ham- mer-blow painted RAL9003 2.17 kg Mx-M-SD-P Weatherproof pole mount. Mx-M-SD-W veya Mx-M- SD-WL. CAUTION! Cannot be used ile MX-M-SD-WM veya Mx-M-SD- WMJB! Zinc-galvanized SECC steel, powder-coated RAL9003 1.58 kg
Sipariş kodu 3Description Compatible Products Material/ Color
Ağırlık 3MX-MH-SecureFlex-ESWS Weatherproof pole mount for extreme conditions. Mx-M-SD-W veya Mx-M- SD-WL. CAUTION! Cannot be used ile MX-M-SD-WM veya Mx-M-SD- WMJB! Stainless steel 3 mm, white 1.23 kg Mx-M-SD-W Weatherproof wall mount for MOVE Speed Dome/Vandal Multisensor/Vandal Turret cameras. All MOVE Speed Dome/Vandal Multi- sensor/Vandal Tur- ret cameras. Can be combined ile Mx-M-SD-C veya Mx-M-SD-P ve cam- era adaptor plates (MX-M-VT-AP, MX-M- VM-AP, Mx-M-VMSD- AP). Die-cast ADC12 aluminium alloy, hammer- blow…
Sipariş kodu 4Description Compatible Products Material/ Color
Ağırlık 4Mx-M-SD-WL Extended weather- proof wall mount for MOVE Speed Dome/Vandal Multi- sensor/Vandal Turret cameras. All MOVE Speed Dome/Vandal Multi- sensor/Vandal Tur- ret cameras. Can be combined ile Mx-M-SD-C veya Mx-M-SD-P ve cam- era adaptor plates (MX-M-VT-AP, MX-M- VM-AP, Mx-M-VMSD- AP). Die-cast ADC12 aluminium alloy, hammer- blow painted RAL9003 1.5 kg MX-M-SD-WM Weatherproof wall mount for MOVE Speed Dome/Vandal Multisensor/Vandal Turret cameras. Can also be mounted on top of wall mount junction box MX-M-…
Sipariş kodu 5Description Compatible Products Material/ Color
Ağırlık 5MX-M-SD-WMJB Weatherproof wall mount junction box (IP66) for Mx-M-SD- WM. Allows for com- fortable cabling ve installation of addi- tional HW equipment such as PoE Injectors, lightning protection, etc. All MOVE Speed Dome/Vandal Turret cameras. CAUTION! Only ila be used as base for Mx-M-SD- WM (wall mount is mounted on top of junction box). Bracket: Steel, powder-coated RAL9003 Junction box: Die-cast ADC12 aluminium alloy, RAL9003 4.8 kg MX-M-SD-PM Pendant mount kit incl. base mount, 25 cm/10 in pendant pipe…
Sipariş kodu 6Description Compatible Products Material/ Color
Ağırlık 6MX-M-SD-PMEXT Extension pipe 25 cm/10 in for MX-M- SD-PM. Extends MX-M-SD- PM; max. extended total length is 1 m/39 in (3 exten- sions). Die-cast ADC10 aluminium alloy, powder- coated RAL9003 0.8 kg MX-M-SD-GN Weatherproof para- pet mount (goose neck; IP66) ile integ- rated junction box. Integrated junction box allows for com- fortable cabling ve installation of addi- tional hardware equipment such as PoE Injectors, light- ning protection, etc. All MOVE Speed Dome/Vandal Multi- sensor/Vandal Tur- ret cameras…
Sipariş kodu 7Description Compatible Products Material/ Color
Ağırlık 7Mx-A-SD-DCT Clear replacement dome for MOVE Speed Dome cameras SD-230 ve SD-330. All MOVE Speed Dome (SD) cameras SD-230 ve SD-330. Ring: Die-cast ADC12 alu- minium alloy, powder-coated RAL9003 Dome: Polycar- bonate, clear 0.3 kg Mx-A-SD-DBC-EC Clear EverClear- coated replacement dome for MOVE Speed Dome cameras SD-230 ve SD-330. All MOVE Speed Dome (SD) cameras SD-230 ve SD-330. Ring: Die-cast ADC12 alu- minium alloy, powder-coated RAL9003 Dome: Polycar- bonate, clear 0.58 kg MX-A-SD-DBT-EC Tinted EverClear-…
Sipariş kodu 11Description Compatible Products Material/ Color
Ağırlık 8MX-NPA-UPOE1A-60W UPoE Power Injector 60W. PoE++ 60W Network Power injector • AC Input Voltage: 100 ila 240 VAC (50 ila 60Hz) • AC Input Current: 1.5A @100- 240 VAC • Operating Ambient Temperature: • -10º ila 40ºC @60W • -10º ila 50ºC, humidity 10 ila 90% @30W • IEEE 802.3bt compliant • Output power of 60W over 4-pairs • Supports 10/100/1000Base-T applications • Plug-ve-play installation • Full Protection OVP, OCP• Supports 10/100/1000Base-T applic- ations. All cameras. Plastic hous- ing, black 0.45 kg
Sipariş kodu 12Description Compatible Products Material/ Color
Ağırlık 9Mx-A-ETP1A-2601-SET Media converter set Ethernet (PoE+) - Twisted-Pair. Complete set consisting of two two-wire transmit/receive units for establishing an Eth- ernet transmission path üzerinden twisted-pair cables. • Trans- mission of Ethernet ve PoE+
Güç beslemesiüzerinden two-wire line uygun olarak IEEE1901. • Simple connection of 10/100 Mbps Ethernet end devices • Max. 95 Mbps transmission bandwidth, range kadar 600 m/656 yd for data only, 300 m/328 yd for PoE depending on the quality of the twisted- pair link • 128 bit AES network data encryption • Power sup- ply 2-wire transmitter (Tx) ve receiver (Rx) as well as end device üzerinden PoE+ network switch veya Harici power sup- ply 56VDC / 1.2A (not included!) • Connected end devices are supplied üzerinden PoE switch…
Sipariş kodu 13Description Compatible Products Material/ Color
Video analitiğiManual
