Vandal Analytics Hemispheric

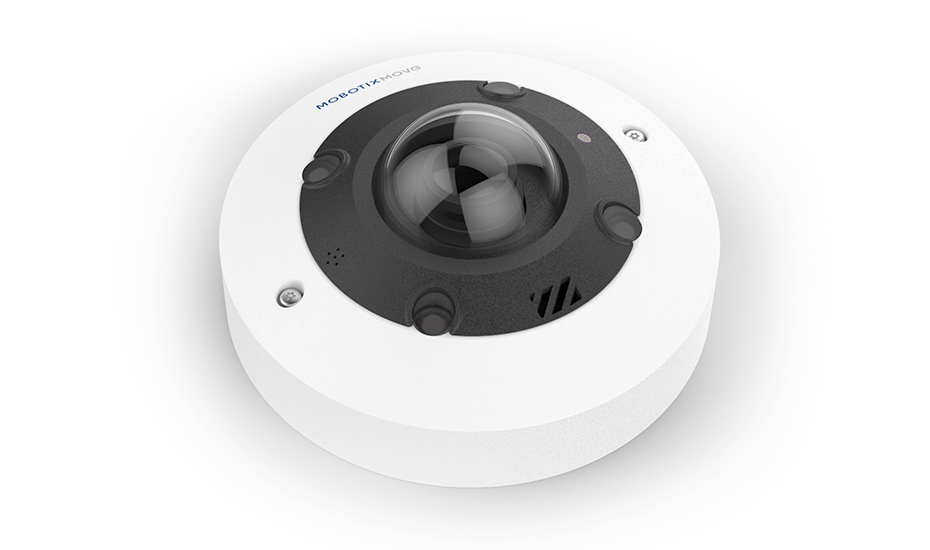

MOBOTIX MOVE Hemisferik Kamera
Vandal Analytics Hemispheric
MOBOTIX MOVE Hemisferik Kamera
MOBOTIX MOVE Hemispheric Camera
Yüksek çözünürlüklü görüntüleme sunar: 12 MP, 12MP. Düşük ışıkta ve gece koşullarında görüntüleme için kızılötesi/gerçek gündüz-gece desteği sunar. Yapay zekâ destekli video analitiği ve akıllı olay algılama özellikleri sağlar.
MOBOTIXHemisferik Kameralar
Teknik dokümantasyon
Özellikler
Genel Özellikler
Görüntü sensörüResolution kadar 12MP Multi Codec support (H.265/H.264/MJPEG) Multiple Dewarp Display Modes Digital PTZ/Panorama View/Quad View True gündüz/gece function (ICR) 3D Motion Compensated Noise Reduction ONVIF Profil S/G/T/M support Smart Event Functions: Harici Input/Manual Trigger, Motion Detection/Periodical Event, Network Failure Detection/Audio Detection microSD/SDHC/SDXC kart desteği kadar 1 TB Enhanced Video Analytics Package (abandoned object- s/sabotage/wrong direction/object count ve removal) Document ID:…
Ürün Bilgileri
Ürün adı12MP Vandal Hemispheric Analytics Indoor Camera
Sipariş koduMx-VH1A-12-IR-VA
Donanım Tasarımı
İşlemciAmbarella CV22 (Quad-core ARM® Cortex®-A53, 1 GHz)
BellekRAM: 512 MB
FLASH bellek256 MB
Görüntü sensörü12MP, 1/1.7" Progressive CMOS IMX226 (SONY STARVIS)
Etkin (kullanılan) piksel sayısı4000x3000 (12MP)
Minimum aydınlatmaColor: 0.1 lux B/W: 0.01 lux
Lens özellikleriType: 1/1.7” Hemispheric Lens
Odak uzaklığı1.65 mm
DiyaframF2.8
Yatay görüş açısı190°
Dikey görüş açısı190°
Kamera
Otomatik kazançMin. gain: 3 dB, max. gain: 45 dB, step size: 3
YakınlaştırmaDigital zoom
Görüntü ayarlarıBacklight Compensation, White Balance, Noise Reduction, Wide Dynamic Range, Privacy Mask, Brightness, Exposure, Sharpness, Contrast, Saturation, Hue, Digital Zoom, Privacy Mask Type, ICR, IR Threshold Rotation Mode 180° rotation
Video kodeğiCompression H.265/MJPEG/H.264 (MPEG-4 Part 10/AVC) Baseline/Main Profil/High Profil Streaming kadar 4 individually configurable streams in H.264/H.265/MJPEG; configurable resolution, frame rate, bandwidth LBR/VBR/CBR in H.265/H.264
SesCodec Compression G.711/G.726/AAC/LPCM Streaming 2 way
Ses girişiMicrophone built-in
Ses çıkışıSpeaker built-in Cyber Security Features Password Protection Evet (including “forced” password change during initial setup) IP address filtering Evet (ila restrict unauthorized access based on IP addresses) IEEE 802.1X network access control Evet (for advanced network security ve authentication) Digest authentication Evet (for secure user authentication) Secure Boot Evet (support of fixed IP setting ve automatic DHCP IP configuration uygun olarak individual MAC address) AES encryption for password protection…
Ağ
Desteklenen protokollerARP, IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF ONVIF Supports profiles S/G/T/M
Sistem Entegrasyonu
SesDetection Enhanced Video Analytics (dahili) Abandoned objects Intrusion (object classification) Sabotage Wrong direction Loitering (object classification) Object counting (object classification) Object removal Stopped vehicle (object classification) 2 analytics functions can be activated simultaneously Event Triggers Harici input Analytics Network failure detection Periodical event Manual trigger Event Actions Harici output activation Video ve audio recording ila edge storage File upload: FTP, network share ve…
MuhafazaMaterials Metal ve Plastic
Muhafaza 2Color RAL 9003 Power Requirements PoE IEEE802.3af, Sınıf 0, max 12.95 W PoE Modes Supported Mode A veya Mode B Connectors RJ45
Alarm girişix1, Alarm out x1, Terminal Block
Ses 2in Terminal Block
Ses 3out Terminal Block
DepolamamicroSD/SDHC/SDXC kart desteği kadar 1 TB, Support for recording ila NAS, MOBOTIX MOVE NVR IR Illumination 850 nm; kadar 15 m/49 ft distance depending on reflection of scenery
Çalışma sıcaklığı-10 ila 55 °C/14 °F ila 131 °F
Bağıl nem90 % yoğuşmasız
Depolama 2Conditions -20 ila 70 °C/-4 ila 158 °F Approvals EMC, Safety, Environment, CE/FCC, RoHS, IK10
MTBF (ortalama arızasız çalışma süresi)95,000 saat Warranty 5 yıl
Ağırlık565 g Observe the MOBOTIX MOVE Installation Hints document ila ensure optimum performance of the camera features
Sipariş koduOverview Outline Discern Perceive Characterize Validate Scrutinize Mx-VH1A-12-IR-VA DORI Specifications DORI Distances
Sipariş kodu 2Description Compatible Products Material/ Color
Ağırlık 2Mx-M-VH1A-IC Indoor in-ceiling mount for MOVE 12MP Hemispheric cameras. MOVE 12MP Hemispheric cam- era Mx-VH1A-12- IR-VA. Zinc-gal- vanized SECC steel, powder- coated RAL9003 0.8 kg
Sipariş kodu 4Description Compatible Products Material/ Color
Ağırlık 3MX-NPA-UPOE1A-60W UPoE Power Injector 60W. PoE++ 60W Network Power injector • AC Input Voltage: 100 ila 240 VAC (50 ila 60Hz) • AC Input Current: 1.5A @100- 240 VAC • Operating Ambient Temperature: • -10º ila 40ºC @60W • -10º ila 50ºC, humidity 10 ila 90% @30W • IEEE 802.3bt compliant • Output power of 60W over 4-pairs • Supports 10/100/1000Base-T applications • Plug-ve-play installation • Full Protection OVP, OCP• Supports 10/100/1000Base-T applic- ations. All cameras. Plastic hous- ing, black 0.45 kg
Sipariş kodu 5Description Compatible Products Material/ Color
Ağırlık 4Mx-A-ETP1A-2601-SET Media converter set Ethernet (PoE+) - Twisted-Pair. Complete set consisting of two two-wire transmit/receive units for establishing an Eth- ernet transmission path üzerinden twisted-pair cables. • Trans- mission of Ethernet ve PoE+
Güç beslemesiüzerinden two-wire line uygun olarak IEEE1901. • Simple connection of 10/100 Mbps Ethernet end devices • Max. 95 Mbps transmission bandwidth, range kadar 600 m/656 yd for data only, 300 m/328 yd for PoE depending on the quality of the twisted- pair link • 128 bit AES network data encryption • Power sup- ply 2-wire transmitter (Tx) ve receiver (Rx) as well as end device üzerinden PoE+ network switch veya Harici power sup- ply 56VDC / 1.2A (not included!) • Connected end devices are supplied üzerinden PoE switch…
Sipariş kodu 6Description Compatible Products Material/ Color
