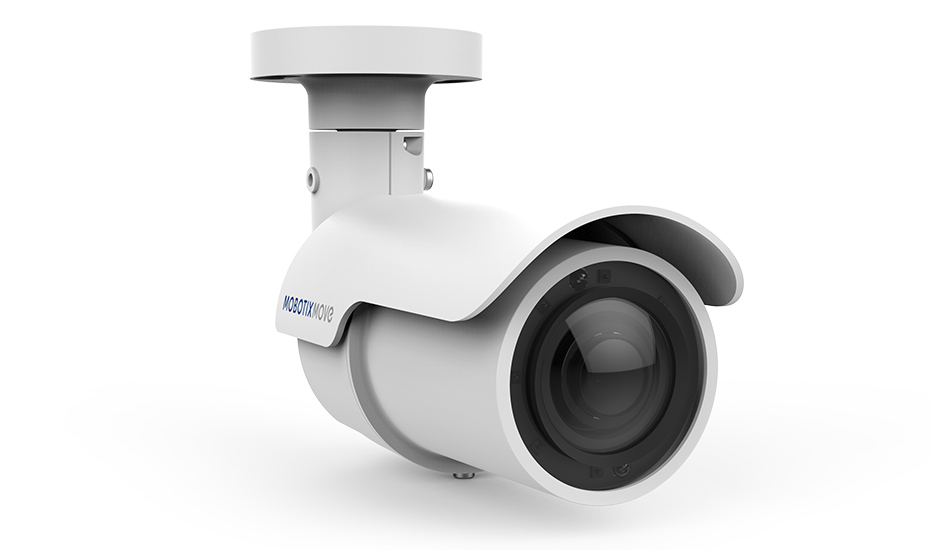

VB2A-5-IR-VA
MOBOTIX MOVE 2/5MP Bullet Kameralar
VB2A-5-IR-VA
MOBOTIX MOVE 2/5MP Bullet Kameralar
MOBOTIX MOVE 2/5MP Bullet Cameras
Yüksek çözünürlüklü görüntüleme sunar: 5MP, 2MP. Düşük ışıkta ve gece koşullarında görüntüleme için kızılötesi/gerçek gündüz-gece desteği sunar. Yapay zekâ destekli video analitiği ve akıllı olay algılama özellikleri sağlar.
MOBOTIXBullet Kameralar
Teknik dokümantasyon
Özellikler
Ürün Bilgileri
Ürün adı5MP Vandal Bullet Analytics Camera
Sipariş koduMx-VB2A-5-IR-VA
Donanım Tasarımı
İşlemciAmbarella S6L55m (Quad-core ARM® Cortex®-A53, 1 GHz)
BellekRAM: 512 MB
FLASH bellek256 MB
Görüntü sensörü5MP, 1/2.7" Progressive CMOS OS05A20 (OmniVision)
Etkin (kullanılan) piksel sayısı2688x1944 (5MP) Lens
Minimum aydınlatmaColor: 0.08 lux B/W: 0.008 lux
Lens özellikleriMotorized Lens: Zoom, Focus, P-IRIS
Odak uzaklığı2.7 ila 12 mm
DiyaframF1.6 ila F2.9
Yatay görüş açısı102.1° (Wide), 31.5° (Tele)
Dikey görüş açısı70.3° (Wide), 22.7° (Tele)
Ön cam kaplamasıSuperhydrophilic MOBOTIX EverClear nano coating transforms water droplets into an ultra-thin water film upon impact. The coating ensures best image quality in rain ve difficult Harici conditions ve it reduces reflec- tions ve noise in low-light scenarios. EverClear is dirt-repellent ve increases the stability as well as the scratch-resistance of the front glass, fur- ther reducing maintenance efforts. Coating endurance kadar 3 yıl depend- ing on environmental conditions ve cleaning treatment
Kamera
Gündüz / geceAutomatic mechanically switchable IR-cut filter Shutter Speed Manual Mode:
WDRkadar 1/17550 s Linear: kadar 1/37440 s Automatic Mode: kadar 1/10000 s
Kare hızı (maksimum)WDR on: H.265/H.264: 2688x1944@30 fps + 1024x768@30 fps H.265/H.264: 2592x1944@30 fps + 1280x720@30 fps H.265/H.264: 2688x1512@30 fps + 1280x1024@30 fps H.265/H.264: 1920x1080@30 fps + 1920x1080@30 fps MJPEG: 1080p@30 fps
WDR 2off: H.265/H.264: 2688x1944@30 fps + 1024x768@30 fps H.265/H.264: 2592x1944@30 fps + 1280x720@30 fps H.265/H.264: 2688x1512@30 fps + 1280x1024@30 fps H.265/H.264: 1920x1080@60 fps + 1280x1024@44 fps H.265/H.264: 1920x1080@60 fps + 1280x720@60 fps Stream 1 (main stream) ile resolutions below 1920x1080 can support 2 streams@60 fps MJPEG: 1080p@60 fps
Otomatik kazançMin. gain: 3 dB, max. gain: 48 dB, step size: 3
WDR 3kadar 130 dB Multi Exposure WDR & HDR Engine support
YakınlaştırmaOptical: 4.4x, Digital: 10x
Görüntü ayarlarıColor, Brightness, Sharpness, Contrast, White Balance, Exposure Control, 2DNR, 3DNR, NR by Motion, Masking, Text Overlay Corridor Mode 90°, 180°, 270° Rotation
Video kodeğiCompression/Encoding H.265/H.264/MJPEG Streaming kadar 4 individually configurable streams in H.264/H.265/MJPEG; configurable resolution, frame rate, bandwidth LBR/VBR/CBR in H.265/H.264
SesCodec Compression/Encoding G.711/G.726/AAC/LPCM Streaming 2-Way, bidirectional
Ses girişiLine In: Max 6.2 Vpp Signal In, Input Impedance: 33 kΩ
Ses çıkışıLine Out: 1 Vrms Signal Out, Output Resistance: 200 Ω Cyber Security Features Password Protection Evet (including “forced” password change during initial setup) IP address filtering Evet (ila restrict unauthorized access based on IP addresses) IEEE 802.1X network access control Evet (for advanced network security ve authentication) Digest authentication Evet (for secure user authentication) Secure Boot Evet (support of fixed IP setting ve automatic DHCP IP configuration uygun olarak individual MAC address) AES…
Ağ
Desteklenen protokollerARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2 ONVIF conformance Supports profiles S/G/T/M
Desteklenen tarayıcılarAll current browsers are supported
Sistem Entegrasyonu
Sesdetection DNN-Based Video Analytics Abandoned objects Intrusion (object classification/filtering for people, vehicles, etc.) Sabotage Wrong direction Loitering (object classification/filtering for people, vehicles, etc.) Object counting (object classification/filtering for people, vehicles, etc.) Object removal Stopped vehicle (object classification/filtering) 2 analytics functions can be activated simultaneously Event Triggers Harici input Analytics Network failure detection Periodical event Manual trigger…
MuhafazaMaterials Metal Back muhafaza, PC Front
Muhafaza 2Color RAL 9003 Device Color PC front cover: RAL9003 Sunshield: Logo color: Pantone 286C ve Pantone Gray 6 Cu Body color: RAL9003 Back metal body: RAL9003
Alarm girişix2, Alarm out x1, Audio in, Audio out terminal block, DC12V/AC24V terminal block, CVBS Connector COAX (75 Ohm) (CVBS output Mevcut ile max. 2 activated streams) IR Illumination 850 nm; kadar 50 m/164 ft distance depending on reflection of scenery Video Storage microSD/SDHC/SDXC kart desteği kadar 1 TB, Support for recording ila NAS, MOBOTIX HUB, MOBOTIX MOVE NVR Environmental Protection Sınıf IP66, IP67 ve IK10
Çalışma sıcaklığı-55 ila 60 °C/-67 ila 140 °F entegre heater ON Cold Start Temperature -30 °C/-22 °F
Bağıl nem90 % yoğuşmasız
DepolamaConditions -20 ila 70 °C/-4 ila 158 °F Approvals EMC: CE, FCC, BIS Safety: LVD Environmental: IP66, IP67, IK10
MTBF (ortalama arızasız çalışma süresi)95,000 saat Warranty 5 yıl
Ağırlık1280 g Observe the MOBOTIX MOVE Installation Hints document ila ensure optimum performance of the camera features
Alarm girişi / çıkışıCurrent ve Voltage
Alarm girişi 2Alarm Out 3.3 V ile 10 kΩ pull up, 50 mA 350 V DC/AC, 130 mA
Sipariş kodugeniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ geniş açılı ⇔/⇕ Tele ⇔/⇕ Wide- Angle ⇔/⇕ Tele ⇔/⇕ Wide- Angle ⇔/⇕ Tele ⇔/⇕ Mx-VB2A-5-IR-VA 54 m/54 m 177.17 ft/177.17 ft 238 m/188 m 780.84 ft/616.80 ft 27 m/27 m 88.58 ft/88.58 ft 119 m/94 m 390.42 ft/308.40 ft 14 m/13 m 45.93 ft/42.65 ft 60 m/47 m 196.85 ft/154.20 ft 9 m/9 m 29.53 ft/29.53 ft 38 m/30 m 124.67 ft/98.43 ft 4 m/4 m 13.12 ft/13.12 ft 19 m/15 m 62.34 ft/49.21 ft 2 m/2 m 6.56 ft/6.56 ft 10 m/8 m…
Sipariş kodu 2Description Compatible Products Material/ Color
Ağırlık 2Mx-M-BC-P Weatherproof pole mount for MOVE Bullet cameras (IP66, IP67). All MOVE Bullet cameras except Mx-BC1A-2-IR. Die-cast ADC12 alu- minium alloy, hammer blow-painted RAL9003 1.0 kg Mx-M-BC-W Weatherproof wall mount for MOVE Bullet cameras (IP66, IP67). All MOVE Bullet cameras except Mx-BC1A-2-IR. Die-cast ADC12 alu- minium alloy, hammer blow-painted RAL9003 0.84 kg Mx-A-VB-FGK-EC EverClear-coated front glass for MOVE2, 5, ve 8 MP Van- dal Bullet cameras. All MOVE Vandal Bullet (VB) cam- eras from Nov…
Sipariş kodu 3Description Compatible Products Material/ Color
Ağırlık 3Mx-A-VB1A-2-IR-ALPR-FGK-EC EverClear-coated front glass for MOVE 2MP ALPR cameras. MOVE 2MP ALPR camera Mx- VB1A-2-IR-ALPR. Aluminum, glass, rubber 0.033 kg Mx-A-VB1A-2-IR-D-ALPR-FGK-EC EverClear-coated front glass for MOVE 2MP ALPR (D vari- ant) cameras. MOVE 2MP ALPR camera Mx- VB1A-2-IR-D- ALPR. Aluminum, glass, rubber 0.033 kg
Sipariş kodu 5Description Compatible Products Material/ Color
Ağırlık 4MX-NPA-UPOE1A-60W UPoE Power Injector 60W. PoE++ 60W Network Power injector • AC Input Voltage: 100 ila 240 VAC (50 ila 60Hz) • AC Input Current: 1.5A @100- 240 VAC • Operating Ambient Temperature: • -10º ila 40ºC @60W • -10º ila 50ºC, humidity 10 ila 90% @30W • IEEE 802.3bt compliant • Output power of 60W over 4-pairs • Supports 10/100/1000Base-T applications • Plug-ve-play installation • Full Protection OVP, OCP• Supports 10/100/1000Base-T applic- ations. All cameras. Plastic hous- ing, black 0.45 kg
Sipariş kodu 6Description Compatible Products Material/ Color
Ağırlık 5Mx-A-ETP1A-2601-SET Media converter set Ethernet (PoE+) - Twisted-Pair. Complete set consisting of two two-wire transmit/receive units for establishing an Eth- ernet transmission path üzerinden twisted-pair cables. • Trans- mission of Ethernet ve PoE+
Güç beslemesiüzerinden two-wire line uygun olarak IEEE1901. • Simple connection of 10/100 Mbps Ethernet end devices • Max. 95 Mbps transmission bandwidth, range kadar 600 m/656 yd for data only, 300 m/328 yd for PoE depending on the quality of the twisted- pair link • 128 bit AES network data encryption • Power sup- ply 2-wire transmitter (Tx) ve receiver (Rx) as well as end device üzerinden PoE+ network switch veya Harici power sup- ply 56VDC / 1.2A (not included!) • Connected end devices are supplied üzerinden PoE switch…
Sipariş kodu 7Description Compatible Products Material/ Color
