VD-2-IR

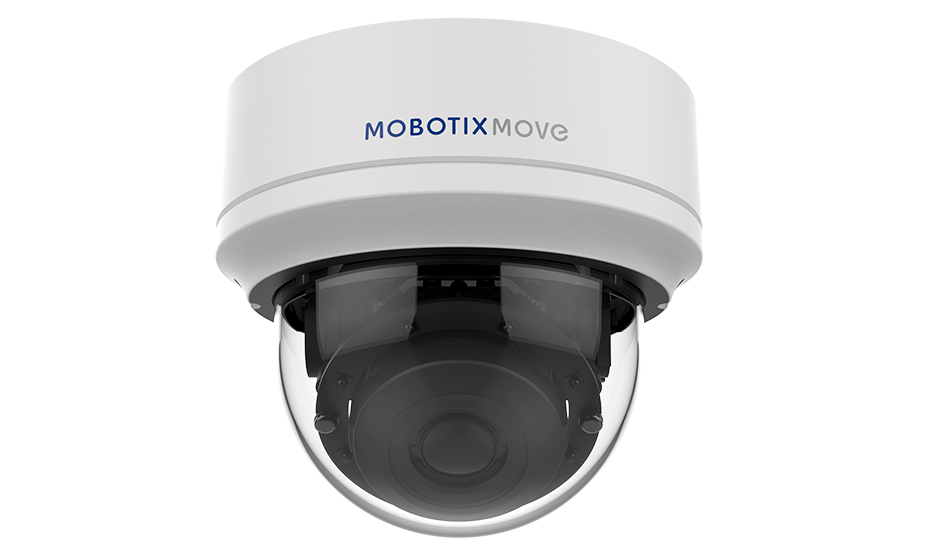

MOBOTIX MOVE 2/5MP Darbeye Dayanıklı Dome
VD-2-IR
MOBOTIX MOVE 2/5MP Darbeye Dayanıklı Dome
MOBOTIX MOVE 2/5MP Vandal Dome
Yüksek çözünürlüklü görüntüleme sunar: 4 MP, 5MP, 2MP. Düşük ışıkta ve gece koşullarında görüntüleme için kızılötesi/gerçek gündüz-gece desteği sunar. Yapay zekâ destekli video analitiği ve akıllı olay algılama özellikleri sağlar.
MOBOTIXSabit Dome Kameralar
Teknik dokümantasyon
Özellikler
Ürün Bilgileri
Ürün adı5MP Vandal Fixed Dome Analytics Camera
Sipariş koduMx-VD1A-5-IR-VA Image Quality
Görüntü sensörü5MP, 1/2.7“ Progressive CMOS
Etkin (kullanılan) piksel sayısıH x V = 2720x1976 (5MP) Pixel Size 2.0 µm
Kare hızı (maksimum)WDR on: H.265/H.264: 2688x1944 @30 fps + 1024x768 @30 fps H.265/H.264: 2592x1944 @30 fps + 1280x720 @30 fps H.265/H.264: 2688x1512 @30 fps + 1280x1024 @30 fps H.265/H.264: 1920x1080 @30 fps + 1920x1080 @30 fps MJPEG: 1080p @30 fps
WDRoff: H.265/H.264: 2688x1944 @30 fps + 1024x768 @30 fps H.265/H.264: 2592x1944 @30 fps + 1280x720 @30 fps H.265/H.264: 2688x1512 @30 fps + 1280x1024 @30 fps H.265/H.264: 1920x1080 @60 fps + 1280x1024 @44 fps H.265/H.264: 1920x1080 @60 fps + 1280x720 @60 fps Stream 1 (main stream) ile resolutions below 1920x1080 can support 2 streams @60 fps MJPEG: 1080p @60 fps Dome Coating Superhydrophilic ve self-cleaning EverClear nano coating reduces image reflections ve camera cleaning efforts (coating endurance kadar 3 yıl…
Minimum aydınlatmaColor: 0.04 lux B/W: 0.002 lux
Lens özellikleriMotorized Lens: Zoom, Focus, P-IRIS
Odak uzaklığı2.7 ila 12 mm
DiyaframF1.6 ila F2.9
Yatay görüş açısı96.76° (Wide), 34.13° (Tele)
Dikey görüş açısı52.21° (Wide), 19.24° (Tele) Lens Mechanics 3-Axis adjustment
Kamera
Gündüz / geceAutomatic mechanically switchable IR-cut filter Shutter Time Manual mode:
WDRkadar 1/67500 s Linear: kadar 1/67500 s Automatic Mode: kadar 1/10000 s
WDR 2kadar 130 dB Multi Exposure WDR & HDR Engine support
YakınlaştırmaOptical: 4.4x, Digital 10x
Görüntü ayarlarıColor, Brightness, Sharpness, Contrast White Balance, Exposure Control 2DNR, 3DNR, NR by Motion Masking, Text Overlay Corridor Mode 90°, 180°, 270° Rotation
Video kodeğiCompression/Encoding H.265/H.264/MJPEG Streaming kadar 4 individually configurable streams in H.264/H.265/MJPEG Configurable resolution/frame rate/bandwidth LBR/VBR/CBR in H.265/H.264
SesCodec Compression/Encoding G.711/G.726/AAC/LPCM Streaming 2-Way, bidirectional
Ses girişiLine In: Max 6.2 Vpp Signal In, Input Impedance: 33 kΩ
Ses çıkışıLine Out: 1 Vrms Signal Out, Output Resistance: 200 Ω
Ağ
GüvenlikUser Authentication/HTTPS/IP Filter/IEEE 802.1x
Desteklenen protokolleriARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2 ONVIF conformance Supports profiles S/G/T
Desteklenen tarayıcılarMicrosoft Internet Explorer 10 veya higher, Google Chrome, Mozilla Firefox, Apple Safari; Microsoft Internet Explorer ile ActiveX is recommended for best performance ve H.265 support
Sistem Entegrasyonu
Sesnoise Detection (ext. microphone required) Enhanced Video Analytics (dahili) Abandoned objects Intrusion (object classification) Sabotage Wrong direction Loitering (object classification) Object count (object classification) Object removal Stopped vehicle (object classification) 2 analytics functions can be activated simultaneously
Alarm girişix2, Alarm out x1, 12 VDC Terminal Block, 24 VAC Terminal Block
Ses 2in 3.5 mm Jack
Ses 3out 3.5 mm Jack, CVBS Connector COAX (75 Ohm) (CVBS output Mevcut ile max. 2 activated streams , requires optional adapter cable 2Pin - COAX ) IR Illumination kadar 40 m distance depending on scenery reflection Video Storage Support for microSD/microSDHC/microSDXC card, Support for recording ila NAS, MOBOTIX MOVE NVR Environmental Protection Sınıf IP66/IK10 Operating Conditions Temperature range: -40 ila 60 °C/-40 ila 140 °F (min. temp. for cold start - 30 °C/-22 °F) Cold start min. temp.: -30 °C/-22 °F 95 %…
DepolamaConditions -20 ila 70 °C/-4 ila 158 °F Approvals EMC: CE/FCC Safety: LVD Environmental: IP66, IK10
Ağırlık760 g
