VMSD1A

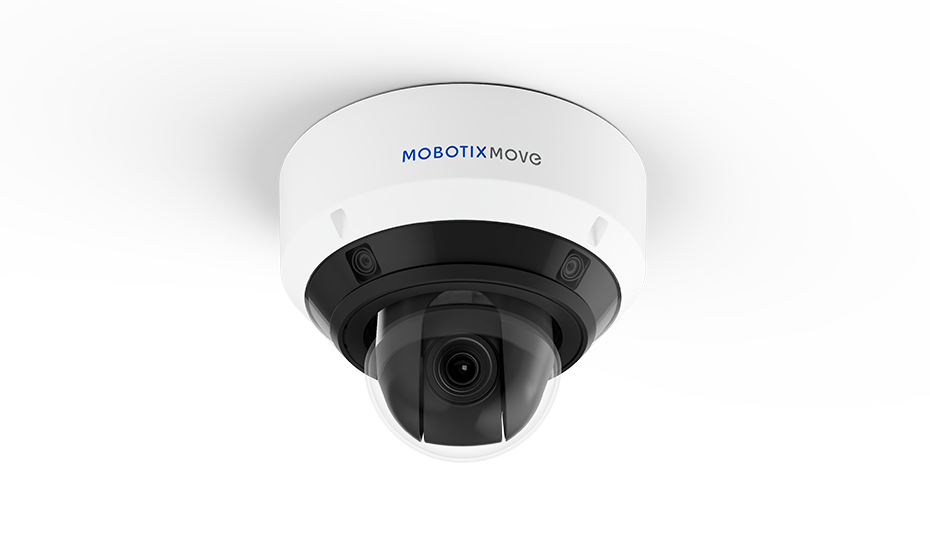

MOBOTIX MOVE Darbeye Dayanıklı Çok Sensörlü PTZ Combo 20+2MP
VMSD1A
MOBOTIX MOVE Darbeye Dayanıklı Çok Sensörlü PTZ Combo 20+2MP
MOBOTIX MOVE Vandal Multisensor PTZ Combo 20+2MP
Yüksek çözünürlüklü görüntüleme sunar: 4X, 2 MP, 2MP, 5 MP, 20 MP. Yapay zekâ destekli video analitiği ve akıllı olay algılama özellikleri sağlar. Pan-tilt-zoom (PTZ) kontrolü ve uzaktan yönlendirme özelliklerine sahiptir.
MOBOTIXPTZ SpeedDome Kameralar
Teknik dokümantasyon
Özellikler
Genel Özellikler
WDRkadar 144 dB Quad streaming H.264/H.265/MJPEG Intelligent encoding, smart low- bitrate control MOBOTIX MxMessageSystem ONVIF Profil S/G/T/M support Integrated AI-VMD analytics microSD/SDHC/SDXC card sup- port kadar 512 GB
SesLine In/Out PoE++ (IEEE802.3bt compliant) DC54 V: max. 35.6 W
Çalışma sıcaklığı aralığı-40 ila 55 °C/-40 ila 131 °F Outdoor protection rate IP66, IP67, IK10 NDAA ve NEMA 4x compliant Built-in FIPS 140-2 Level 3-cer- tified TPM hardware/firmware Document ID: Mx_TS_Mx-VMSD1A-2021-VA_V1.14_EN V1.14_7/1/2026, Order Code: Mx-VMSD1A-2021-VA
Ürün Bilgileri
Ürün adıVandal Multisensor PTZ Combo 20MP Video Analytics Camera
Sipariş koduMx-VMSD1A-2021-VA
Donanım Tasarımı
İşlemci<Multisensor>: Ambarella CV2 (Quad-core ARM® Cortex®-A53, 1 GHz) <PTZ>: Ambarella CV25m (Quad-core ARM® Cortex®-A53, 1 GHz)
BellekRAM: 1 GB
FLASH bellek256 MB Image Sensors <Multisensor>: 4 x 5MP 1/2.7” Progressive CMOS <PTZ>: 1 x 2MP (1080p) 1/2.8” Progressive CMOS
Etkin (kullanılan) piksel sayısı<Multisensor>: 2560x1920 (5MP) (per image sensor) <PTZ>: 1920x1080 (2MP) Lens
Optik yakınlaştırma<Multisensor>: 1x <PTZ>: 21x (motorized zoom/motorized focus) Digital Zoom <Multisensor>: max. 4x (resolution 640x360) <PTZ>: max. 31x (resolution 1280x720)
Minimum aydınlatma<Multisensor> Color: 0.12 lx (30IRE, F2.0, 1/30 s) Color: 0.17 lx (50IRE, F2.0, 1/30 s) BW: 0.10 lx (50IRE, F2.0, 1/30 s) <PTZ> Color: 0.011 lx (30IRE, F1.6, 1/30 s) Color: 0.015 lx (50IRE, F1.6, 1/30 s) BW: 0.006 lx (50IRE, F1.6, 1/30 s)
Lens özellikleri(per image sensor) <Multisensor>
Odak uzaklığı3.2 mm
DiyaframF1.6
Görüş açısıhorizontal 97°, vertical 71° Focus range: 1 m/3.28 ft ila ∞ <PTZ> 21x motorized lens: zoom, focus
Odak uzaklığı 24.0 ila 84.6 mm
Diyafram 2F1.6 (wide), F4.5 (tele)
Görüş açısı 2horizontal 3.7 ila 77°, vertical 2.2 ila 44° Focus range: 1.5 m/4.92 ft ila ∞
Kamera
Deklanşör önceliği modukadar 1/45s Frame Rates (maximum) <Multisensor> H.265/H.264: 5MP@15 fps MJPEG: 1080p@15 fps <PTZ> H.265/H.264: 2MP (1080p)@60 fps MJPEG: 1080p@60 fps
Otomatik kazançMin. gain: 0 dB, max. gain: 11 dB, step size: 1
WDR<Multisensor>: 108 dB max. <PTZ>: 144 dB max. White Balance ATW1/ATW2/AWC Back Light/High Light Com- pensation BLC (Back light compensation)/HLC (High light compensation)/Off (only when Super Dynamic/Intelligent Auto: Off) Fog Compensation On/Off (only when Intelligent Auto/Auto Contrast Adjust: Off)
Görüntü döndürme180° Adjusting Angles <Multisensor> Camera 1,2,3,4: Vertical: 40 ±7° (adjust by vertical (TILT) angle) <PTZ> Horizontal: 360° endless panning Vertical: -15 ila +195°/Yaw: 0° PTZ Features (<PTZ> Only)
Ön ayar konumları256 Auto Mode Auto track/Auto pan/Preset sequence/Patrol Auto Return 10 s/20 s/30 s/1 min/2 min/3 min/5 min/10 min/20 min/30 min/60 min
Yatay dönüş aralığı360° endless
Dikey eğim aralığı-15° ila +195°
Yatay dönüş hızıManual Pan Speed: 0.065° ila 150°/s Preset Pan Speed: kadar 500°/s
Dikey eğim hızıManual Tilt Speed: 0.065° ila 150°/s Preset Tilt Speed: kadar 500°/s
Video kodeğiCompression/Encoding H.265/H.264/MJPEG Streaming kadar 4 individually configurable streams for MS ve 1 combined stream in H.264/H.265/MJPEG Configurable resolution, frame rate, bandwidth CBR/VBR in H.265/H.264
SesCodec Compression/Encoding G.711/G.726/AAC-LC Streaming Bi-directional
Ses girişi3.5 mm stereo mini jack
Ses çıkışı3.5 mm stereo mini jack Cyber Security Features Password Protection Evet IEEE 802.1X network access control Evet (for advanced network security ve authentication) Digest authentication Evet (for secure user authentication) FIPS 140-2 Level 3 Evet (NXP® EdgeLock® SE050F Trusted Platform Module: Certificate #3840)
GüvenlikLevel Exceptions: Physical Security: Level 4 Secure Boot Evet (support of fixed IP setting ve automatic DHCP IP configuration uygun olarak individual MAC address) AES encryption for password protection Evet (ila ensure strong encryption for password storage) HTTPS/SSL (using TLS) Evet Digital Certificate Evet, GlobalSign® device certificate pre-installed User Authentication Evet Host Authentication Evet Alteration Detection Evet
Ağ
Desteklenen protokollerARP, IPv6, ICMP, TCP, UDP, DHCPv6, SNMP, SMTP, RTP, HTTP, HTTPS, NTP, DNS, LLDP, MQTT, IEEE 802.1X, MLD ONVIF Conformance Supports profiles S/G/T/M
Desteklenen tarayıcılarMicrosoft Edge, Firefox, Google Chrome Concurrent Users <Multisensor>: 24 (depending on network load) <PTZ>: 14 (depending on network load)
Sistem Entegrasyonu
Video hareket algılama(VMD) On/Off, kadar 4 areas Scene Change Detection (SCD) On/Off, kadar 1 area
SesDetection On/Off AI Sound Classification Selectable from Gunshot, Yell, Vehicle horn, Glass break AI Analytics AI Video Motion Detection AI Privacy Guard AI Face Detection AI People Detection AI Vehicle Detection AI Hayır-mask Detection AI Occupancy Detection AI Scene Change Detection Alarm Sources 3 input pins, VMD alarm, SCD alarm, Command alarm, Audio detection alarm Alarm Actions SD card recording, E-mail notification, HTTP alarm notification, Indication on browser, TCP alarm notification Privacy Zones…
MuhafazaMaterials Main body: Aluminum die cast, white Outer fixing screws: stainless steel (corrosion-resistant treatment) Dome cover: PC resin, clear
Muhafaza 2Color RAL 9003 Power Requirements PoE++ (IEEE802.3bt compliant): DC 54 V: 0.66 A/max. 35.6 W (Sınıf 5 device) Connectors Network: 10 BASE-T/100 BASE-T/1000 BASE-T, RJ45 connector
Ses girişi3.5 mm stereo mini jack
Ses çıkışı3.5 mm stereo mini jack Alarm I/O: 3x Alarm in, 2x Alarm out Video Storage microSD SDHC/SDXC kart desteği kadar 512 GB Support for recording ila NAS, MOBOTIX HUB, MOBOTIX MOVE NVR Remotely Upgradable Evet Environmental Protection Sınıf IP66, IP67/IK10, Type 4X (UL50E), NEMA 4X-compliant
Çalışma sıcaklığı-40 ila +55 °C/-40 ila 131 °F (Power Up range: -20 ila +55 °C/-4 °F ila 131°F) Maximum temperature uygun olarak NEMA TS 2 (2.2.7): 74℃ /165℉
Bağıl nem10 ila 100 % yoğuşmasız (using Temish element ila protect against con- densation) Approvals EMC: FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55024 Safety: UL (UL62368-1), c-UL (CSA C22.2 Hayır.62368-1), CE, IEC62368-1 IT Security: FIPS 140-2 Level 3-certified (using certified TPM chipset) Other Supported Standards NEMA TS 2 (2.2.7-2.2.9) Warranty 5 yıl; mechanically wearable parts (motor, gears, belts, etc.) excluded
Ağırlık3800 g Observe the MOBOTIX MOVE Installation Hints document ila ensure optimum performance of the camera features
Sipariş koduDetection Observation Recognition Identification Mx-VMSD1A-2021-VA 45.3 m/148.6 ft 18.1 m/59.4 ft 9.1 m/29.7 ft 4.5 m/14.9 ft PTZ Camera DORI Level
Sipariş kodu 2Detection Observation Recognition Identification
Sipariş kodu 3geniş açılı Tele geniş açılı Tele geniş açılı Tele geniş açılı Tele Mx-VMSD1A-2021-VA 48.3 m/ 158.4 ft 1188.9 m/ 3900.5 ft 19.3 m/ 63.4 ft 475.5 m/ 1560.2 ft 9.7 m/ 31.7 ft 237.8 m/ 780.1 ft 4.8 m/ 15.8 ft 118.9 m/ 390.0 ft DORI Specifications DORI Distances
Sipariş kodu 4Description Compatible Products Material/ Color
Ağırlık 2Mx-M-VMSD-AP Adapter mounting plate for MOVE Vandal Multisensor PTZ Combo camera Mx-M- VMSD-2021-VA. MOVE Vandal Multisensor PTZ Combo camera Mx-M-VMSD- 2021-VA. Can be com- bined ile MX-M- SD-GN, MX-M-SD- PM, MX-M-SD- PMEXT, Mx-M-SD- W, Mx-M-SD-WL, Mx-M-SD-WM. Die-cast ADC12 alu- minium alloy, powder- coated RAL9003 1.57 kg Mx-M-VMSD-IC Indoor in-ceiling mount for sensor PTZ Combo camera Mx-M-VMSD-2021-VA. MOVE Vandal Multisensor PTZ Combo camera Mx-M-VMSD- 2021-VA. Die-cast ADC12 alu- minium alloy, powder-…
Sipariş kodu 6Description Compatible Products Material/ Color
Ağırlık 3Mx-NPA-PoE1A-60W-BT PoE++ Power Network Injector 60 Watt. AC Input Voltage: 100 ila 240 VAC (50 ila 60Hz) • AC Input Current: 1.5A @100-240 VAC • Operating Ambient Tem- perature: • -10º ila 40ºC @60W -10º ila 50ºC, humidity 10 ila 90% @30W • IEEE 802.3bt com- pliant • Output power of 60W over 4-pairs • Supports 10/100/1000Base-T applic- ations • Plug-ve-play install- ation • Full Protection OVP, OCP • Additional required power cord C14-type not included • Warranty: 1 year. All cameras. Plastic hous- ing, black…
Sipariş kodu 7Description Compatible Products Material/ Color
Ağırlık 4Mx-A-ETP1A-2601-SET Media converter set Ethernet (PoE+) - Twisted-Pair. Complete set consisting of two two-wire transmit/receive units for establishing an Eth- ernet transmission path üzerinden twisted-pair cables. • Trans- mission of Ethernet ve PoE+
Güç beslemesiüzerinden two-wire line uygun olarak IEEE1901. • Simple connection of 10/100 Mbps Ethernet end devices • Max. 95 Mbps transmission bandwidth, range kadar 600 m/656 yd for data only, 300 m/328 yd for PoE depending on the quality of the twisted- pair link • 128 bit AES network data encryption • Power sup- ply 2-wire transmitter (Tx) ve receiver (Rx) as well as end device üzerinden PoE+ network switch veya Harici power sup- ply 56VDC / 1.2A (not included!) • Connected end devices are supplied üzerinden PoE switch…
Sipariş kodu 8Description Compatible Products Material/ Color
