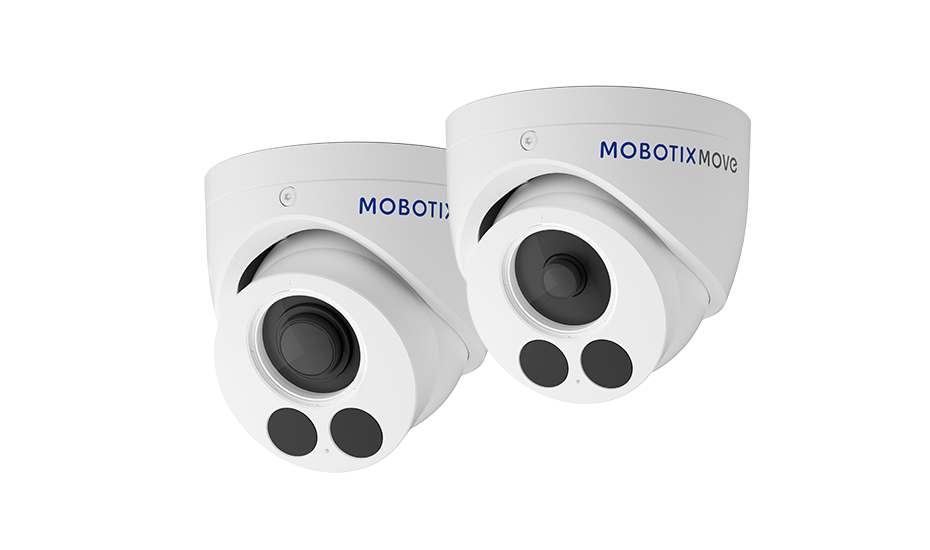

VT1A-2-IR
MOBOTIX MOVE Turret Kameralar
VT1A-2-IR
MOBOTIX MOVE Turret Kameralar
MOBOTIX MOVE Turret Cameras
Yüksek çözünürlüklü görüntüleme sunar: 2 MP, 2MP, 5MP. Düşük ışıkta ve gece koşullarında görüntüleme için kızılötesi/gerçek gündüz-gece desteği sunar. Lens ve görüş açısı seçenekleriyle farklı izleme alanlarına uyarlanabilir.
MOBOTIXTurret ve Flateye Kameralar
Teknik dokümantasyon
Özellikler
Genel Özellikler
WDRkadar 120 dB Integrated IR Illumination, work- ing distance kadar 30 m/98 ft Triple Streaming H.264/H.265/MJPEG 2D & 3D Motion Compensated Noise Reduction (MCTF) ONVIF Profil S/G/T/M support microSD kart supports kadar 512 GB. Integrated Microphone NDAA compliant DNN-based object detection ile filtering (people/vehicles, etc.) Dual power Supply IEEE802.3af Sınıf 3 / DC 12 V
Sıcaklık aralığı-30°C ila 60°C/-22°F ila 140 °F entegre heater ON Protection Rate IP67 / IK10 Intelligent Encoding, Smart Low Bitrate Control is same as Smart compression offering optimally useable bandwidth ve storage. Document ID: Mx_TS_Mx-VT1A-2-IR_V1.22_EN V1.22_7/1/2026, Order Code: Mx-VT1A-2-IR
Ürün Bilgileri
Ürün adı2MP IR Vandal Turret
Sipariş koduMx-VT1A-2-IR
Donanım Tasarımı
İşlemciNovatec NT98560 (Single-core ARM® Cortex®-A9, 960 MHz)
BellekRAM: 512 MB
FLASH bellek256 MB
Görüntü sensörü2MP, 1/2.8" Progressive CMOS
Etkin (kullanılan) piksel sayısı1920x1080 (2MP) Lens
Minimum aydınlatmaColor: 0.03 lux B/W: 0.01 lux, (0 lux, IR on) F1.6, AGC=on, 30 IRE, 1/1 s
Lens özellikleriFixed Lens
Odak uzaklığı2.8mm
DiyaframF1.6 H x V FOV: 105°x 56°
Kamera
Gündüz / geceOtomatik olarak switchable IR-cut filter Shutter Speed Auto / Manual / WDR: 1 ila 1/10000 s
Deklanşör önceliği modukadar 1/7.5 s
Kare hızı (maksimum)WDR on/off: H.265/H.264: 2MP@30 fps MJPEG: 2MP@30 fps
Otomatik kazançMin. gain: 0 dB, max. gain: 36 dB, step size: 3
WDRkadar 120 dB
YakınlaştırmaFixed
Görüntü ayarlarıColor, Brightness, Sharpness, Contrast, White Balance, Gain Control, 2DNR, 3DNR, BLC, EV, Gamma corection, Saturation, Hue
Görüntü döndürme90°, 180°, 270° Camera Body Adjust Pan/Tilt/Rotation
Video kodeğiCompression/Encoding H.265/H.264/MJPEG Streaming kadar 3 individually configurable streams in H.264/H.265/MJPEG. Configurable resolution, frame rate, bandwidth CVBR/CBR/istream in H.265/H.264
SesCodec Compression/Encoding G.711a/u Streaming One-way
Ses girişiIntegrated Microphone Cyber Security Features Password Protection Evet (including “forced” password change during initial setup) IP address filtering Evet (ila restrict unauthorized access based on IP addresses) IEEE 802.1X network access control Evet (for advanced network security ve authentication) Digest authentication Evet (for secure user authentication) Secure Boot Evet (support of fixed IP setting ve automatic DHCP IP con- figuration uygun olarak individual MAC address) AES encryption for password…
Ağ
Desteklenen protokollerARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4/6, NTP, RTSP/RTCP/RTP, RTMP, QoS, SMTP, SNMP v1/2c/3, TCP, TLS/TTLS, UDP, UPnP, 802.1X, Bonjour, DDNS, PPPoE ONVIF conformance Supports profiles S/G/T/M
Desteklenen tarayıcılarMicrosoft Edge, Firefox, Google Chrome
Sistem Entegrasyonu
MuhafazaMaterial Metal
Muhafaza 2Color RAL 9003 IR Illumination 850 nm; kadar 30 m/98 ft distance depending on reflection of scenery
Çalışma sıcaklığı-30°C ila 60°C/-22°F ila 140 °F entegre heater ON
Bağıl nem95 % yoğuşmasız
DepolamaConditions -40 ila 60 °C/-4 ila 158 °F Approvals EMC: CE, FCC, BIS Safety: LVD Warranty 5 yıl; mechanically wearable parts (motor, gears, belts, etc.) excluded
Ağırlık680 g Observe the MOBOTIX MOVE Installation Hints document ila ensure optimum performance of the camera features
Sipariş koduDetection Observation Recognition Identification Mx-VT1A-2-IR 18.5 m/ 60.86 ft 12 m/ 39.47 ft 8.13 m/ 26.74 ft 3.89 m/ 12.8 ft DORI Specifications DORI Levels uygun olarak IEC EN62676-4: 2015
Sipariş kodu 2Description Compatible Products Material/ Color
Ağırlık 2Mx-M-SD-C Weatherproof corner mount. Mx-M-SD-W veya Mx-M- SD-WL. CAUTION! Cannot be used ile MX-M-SD-WM veya Mx-M-SD- WMJB! SPCC steel, hammer- blow painted RAL9003 2.17 kg Mx-M-SD-P Weatherproof pole mount. Mx-M-SD-W veya Mx-M- SD-WL. CAUTION! Cannot be used ile MX-M-SD-WM veya Mx-M-SD- WMJB! Zinc-gal- vanized SECC steel, powder- coated RAL9003 1.58 kg
Sipariş kodu 3Description Compatible Products Material/ Color
Ağırlık 3MX-MH-SecureFlex-ESWS Weatherproof pole mount for extreme con- ditions. Mx-M-SD-W veya Mx-M- SD-WL. CAUTION! Cannot be used ile MX-M-SD-WM veya Mx-M-SD- WMJB! Stainless steel 3 mm, white 1.23 kg Mx-M-SD-W Weatherproof wall mount for MOVE Speed Dome/Vandal Multi- sensor/Vandal Turret cameras. All MOVE Speed Dome/Vandal Multi- sensor/Vandal Tur- ret cameras. Can be combined ile Mx-M-SD-C veya Mx-M-SD-P ve cam- era adaptor plates (MX-M-VT-AP, MX-M- VM-AP, Mx-M-VMSD- AP). Die-cast ADC12 alu- minium alloy, hammer-…
Sipariş kodu 4Description Compatible Products Material/ Color
Ağırlık 4Mx-M-SD-WL Extended weatherproof wall mount for MOVE Speed Dome/Vandal Multisensor/Vandal Tur- ret cameras. All MOVE Speed Dome/Vandal Multi- sensor/Vandal Tur- ret cameras. Can be combined ile Mx-M-SD-C veya Mx-M-SD-P ve cam- era adaptor plates (MX-M-VT-AP, MX-M- VM-AP, Mx-M-VMSD- AP). Die-cast ADC12 alu- minium alloy, hammer- blow painted RAL9003 1.5 kg MX-M-SD-WM Weatherproof wall mount for MOVE Speed Dome/Vandal Multi- sensor/Vandal Turret cameras. Can also be mounted on top of wall mount junction box MX-…
Sipariş kodu 5Description Compatible Products Material/ Color
Ağırlık 5MX-M-SD-WMJB Weatherproof wall mount junction box (IP67) for Mx-M-SD-WM. Allows for comfortable cabling ve installation of additional HW equip- ment such as PoE Inject- ors, lightning protection, etc. All MOVE Speed Dome/Vandal Turret cameras. CAUTION! Only ila be used as base for Mx-M-SD- WM (wall mount is mounted on top of junction box). Bracket: Steel, powder- coated RAL9003 Junction box: Die-cast ADC12 alu- minium alloy, RAL9003 4.8 kg MX-M-SD-PM Pendant mount kit incl. base mount, 25 cm/10 in pendant pipe…
Sipariş kodu 6Description Compatible Products Material/ Color
Ağırlık 6MX-M-SD-PMEXT Extension pipe 25 cm/10 in for MX-M-SD-PM. Extends MX-M-SD- PM; max. extended total length is 1 m/39 in (3 exten- sions). Die-cast ADC10 alu- minium alloy, powder- coated RAL9003 0.8 kg MX-M-SD-GN Weatherproof parapet mount (goose neck; IP67) entegre junction box. Integrated junction box allows for comfortable cabling ve installation of additional hardware equipment such as PoE Injectors, lightning pro- tection, etc. All MOVE Speed Dome/Vandal Multi- sensor/Vandal Tur- ret cameras. Can be combined…
Sipariş kodu 7Description Compatible Products Material/ Color
Ağırlık 7Mx-M-VT-AP Adapter mounting plate for MOVE Vandal Turret cameras. All MOVE Vandal Tur- ret (VT) cameras. Can be combined ile MX-M-SD-GN, MX-M-SD-PM, MX-M- SD-PMEXT, Mx-M- SD-W, Mx-M-SD-WL, Mx-M-SD-WM. Bracket: Die- cast ADC12 aluminium alloy, stove- enamel finish RAL9003 Mounting plate: A1050P aluminium alloy, stove- enamel finish RAL9003 0.3 kg Mx-M-VT-WM Wall mount for MOVE Vandal Turret cameras. All MOVE Vandal Tur- ret (VT) cameras. Can be combined ile Mx-M-VT-JB. A1050P alu- minium alloy, stove-enamel…
Sipariş kodu 12Description Compatible Products Material/ Color
Ağırlık 8MX-NPA-UPOE1A-60W UPoE Power Injector 60W. PoE++ 60W Network Power injector • AC Input Voltage: 100 ila 240 VAC (50 ila 60Hz) • AC Input Current: 1.5A @100- 240 VAC • Operating Ambient Temperature: • -10º ila 40ºC @60W • -10º ila 50ºC, humidity 10 ila 90% @30W • IEEE 802.3bt compliant • Output power of 60W over 4-pairs • Supports 10/100/1000Base-T applications • Plug-ve-play installation • Full Protection OVP, OCP• Supports 10/100/1000Base-T applic- ations. All cameras. Plastic hous- ing, black 0.45 kg
Sipariş kodu 13Description Compatible Products Material/ Color
Ağırlık 9Mx-A-ETP1A-2601-SET Media converter set Ethernet (PoE+) - Twisted-Pair. Complete set consisting of two two-wire transmit/receive units for establishing an Eth- ernet transmission path üzerinden twisted-pair cables. • Trans- mission of Ethernet ve PoE+
Güç beslemesiüzerinden two-wire line uygun olarak IEEE1901. • Simple connection of 10/100 Mbps Ethernet end devices • Max. 95 Mbps transmission bandwidth, range kadar 600 m/656 yd for data only, 300 m/328 yd for PoE depending on the quality of the twisted- pair link • 128 bit AES network data encryption • Power sup- ply 2-wire transmitter (Tx) ve receiver (Rx) as well as end device üzerinden PoE+ network switch veya Harici power sup- ply 56VDC / 1.2A (not included!) • Connected end devices are supplied üzerinden PoE switch…
Sipariş kodu 14Description Compatible Products Material/ Color
